ETTES biogas generator & CHP equipment not only provides electricity, but also heat too. This is named CHP. The heat provided can be used for hot water, heating facilities and steam. Additionally, it can also be used to generate cold. The combined utilization of heat and power can increase the comprehensive efficiency to more than 90% in the process of power generation. It can save as much as 40% of the primary energy and reduce carbon dioxide emissions by 60%. This is the reason why CHP is highly efficient and environmentally friendly.
► Applied in agriculture. animal husbandry,
organic waste water. garbage burying and
other fields, thereby providing electricity energy
and heat energy for biogas CHP cogeneration
system, and improving the comprehensive benefit
of methane gas power plant.
► Realize the Steam, heat and electricity are
three kinds of energy being produced on a
cascade utilization, the heat generated from
ETTES POWER biogas cogeneration/trigeneration is fully used. The comprehensive utilization of energy will be raised to more than 80%.
► Compared to conventional coal-fired and fossil fuels, ETTES POWER biogas cogeneration uses lean combustion technology and NOx and CO2 emissions are reduced by 60%-80%, and dust emissions closer to zero.
ETTES POWER biogas engine generator & cogeneration has been
widely used in various fields, mainly includes:
• Agricultural field: corn straw, rice straw, wheat straw, watermelonvine, greenhouse and so on.
• Livestock industry: pig farms, cattle farms, chicken farms,
sheep farms, farmhouse and so on.
• Industrial Organic waste water: brewery, paper mill, food
factory,palm oil factory, etc.
► Efficient and Environmentally Friendly Energy Utilization Technology
• Achieve the energy cascade utilization of heat, power
and cooling with up to 90% overall energy utilization rate.
• No need to transport and distribute and no distribution loss.
• Compared with traditional fuel coal and fossil energy, reduce the emission of NOx and CO2 by 60%-80% with nearly zero S02 and dust emission.
• Fuel can be natural gas or some special gases such as biogas, coal mine gas, oil associated gas and landfill gas.
► High-quality Product Design System for Silent and Containerized Biogas CHP/CCHP Power Station
► Perfect Products Manufacturing System
► The Functions of ETTES CHP System
Efficient CHP equipment with green energy to lower cost
• Independent on-site energy with small footprint
• Suitable for different gas compositions and types with output meeting the standard of natural gas set
• Intelligent control system achieving comprehensive and effective monitor
• Instead of diesel oil saving long-distance transportation cost
• Durable parts for continuous 50,000 service hours
• Containerized CHP unit for quick installation and running
Safe and reliable distributed energy
• Cooling system, heating system and power system are put into module
and distributed around users, making energy utilization safe and reliable
• Main elements of the product: gas engine, generator, heat exchange system and intelligent control system
• Suitable for large commercial communities, hotels, residential buildings etc
• Highly efficient gas engine with stable and strong power
• Lean combustion technology with high air/fuel ratio
• Automatic oil refilling system
• Natural and forced ventilation integration technology
• Frequency conversion control technology for fans
► Many Advanced Technologies Integrated

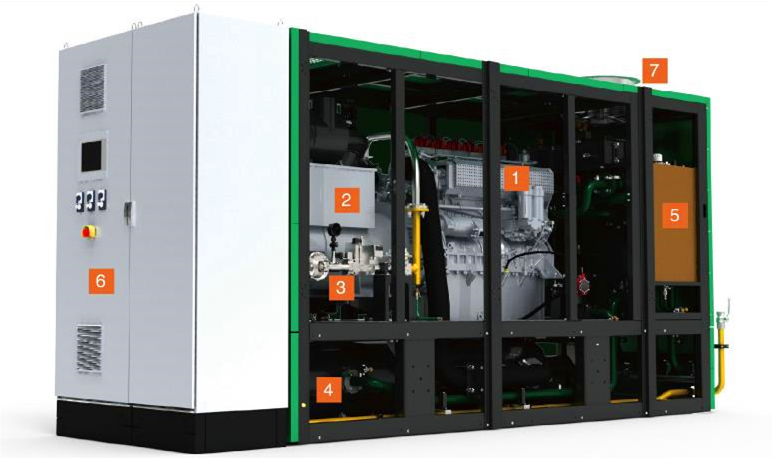

1. Gas engine
2. Synchronous alternator
3. Gas train
4. Heat exchanger-exhaust gas or water
5. Daily oil tank
6. Control cabinet
7. Ventilation duct
► Intact Configuration and Control
• Touch-screen operation control system
• Electronic ignition control system based on microprocessor
• Exact speed control system for high stability of frequency
• Power output through air cooled synchronous generator
• Heat recovery through coolant and exhaust exchangers
• Integrated control cabinet with comprehensive monitor,
control and protection
► Module Design
• Fuel input system, power output system and heat output
systems all adopt module design for convenient and fast
installation and use
• Access doors is easily dismountable
• Outdoor type units can be used directly outdoors without
► Advanced Waste Heat Recovery System
The power produced during the unit operation can meet
the demand of users, at the same time a mass of heat in
the jacket water and exhaust gas can be recovered through
heat exchangers, heat recovery boilers and chillers to
provide users heat and cooling
► Paralleling/Flexible Grid Connection Technology
• Several units can run in paralleling mode for heavy-duty
demand and automatically parallel or disconnect according
to the changes of load
• ETTES POWER Control system has flexible grid connected
control technology, which can be used for meeting the island
mode and the synchronizing mode without restrictions..
► Multiple Working Modes and Control Methods
• All power control switch, oil filling control switch, fan modes
control switch can be operated easily
• Operation of fans can be controlled automatically or manually
► Frequency Conversion Control Technology for Fans
• No need to start fans in low temperature
• Start several fans in medium temperature to both supply
power and low gas consumption
► Automatic Ooperation System with Touch Screen
● 10-inch colored touch display screen for easy data reading
● Intact parameter monitor and control of fuel, engines
● Monitor and control of pumps, valves and fans
● Local or remote monitor and control
● Automatic oil refilling system for continuous unit running
● Extensible input and output control meeting the users
► Paralleling and Control Cabinet
● Integrated paralleling and control cabinet as standard configuration with IP54 protection
● Internal integrated controller and electrical equipment
● Paralleling function with other units or mains and control and protection functions
● Master control system for whole unit with interface to higher level control unit
● Easy paralleling with mains in peak shaving mode, output to mains mode or isolated mode
► Automatic Charging System
Automatically check the voltage of the battery ensuring the
voltage in the applicable range and the unit can start at any time
► Power Switch Cabinet
With IP54 protection and internal integrated electrical
components such as main breaker, CT, VT and busbar, the
cabinet control output of power
► Lighting System
Interior lighting system provides sufficient lighting for
convenient daily maintenance and service
► Controller Ccommunication iInterface
For remote monitor and other communication functions
► Automatic Oil Refilling System
The oil level controller monitors the engine oil at any time.
When the level is lower than the set point, daily auxiliary oil
pump will fill automatically until reaching the set point. With
big-size inspection window, the oil level controller is convenient
to check the oil level
► Support OSC(online and offline service center)
● Easy connection to the computer for convenient data share
● Achieving remote monitor and inspection, inspection aid
and faults diagnosis
● Running status monitored and parameter feedback of all
units which have been delivered
Products are fitted with many kinds of sensors and safety valves, integrating control, measurement and protection functions
► Cylinder Temperature Protection System
Cylinder temperature sensors or exhaust manifold temperature sensors can measure the combustion or exhaust gas temperature and send signals to the control system to monitor engine's operation condition and ensure normal operation.
► Detonation Control System
Based on the signals from sensors, the controller sends out analog signals to ignition system after processing so as to adjust ignition timing, reduce load or shutdown to avoid detonation.
► Gas Leakage Protection Device
This avoids gas leakage and once the gas leaks, gas pipeline will
be turned off and alarms will be sent out.
► Lightning Protection Device
The device can introduce lightning into the earth and protect
personnel and equipment from lightning stroke.
► Smoke Alarm System
Internal smoke status is detected in time and once excessive smoke is detected, the system would send out a warning to prevent fire spreading or explosion.
► Electrical Inlet and Outlet Shutter
The shutters control inlet and outlet automatically, i.e. close shutters when CHP unit stops or open them when CHP unit starts,
thus these achieve automatic adjustment and prevent small
animals entering into the unit when it stops. Once gas leakage
happens, they are closed automatically to isolate internal air
and prevent explosion.
► Air Circuit Breaker
Well-known brand breaker is integrated Into breaker cabinet with
control and various protection functions against overload short circuit, under voltage etc.
► Emergency Radiator
When the heat load is lower, the radiator is used to cool jacket water and turbocharged mixture to keep coolant and suction mixture temperature in permissible range.
► Separation of Heavy Current and Light Current
All the cables have protective covers with support and fixation device.

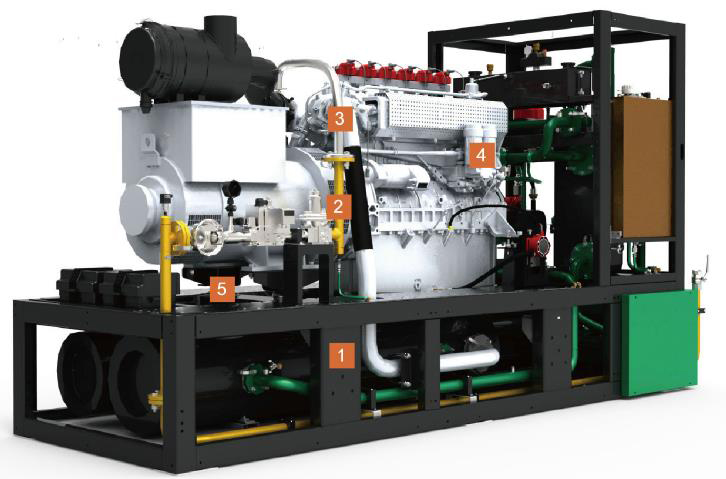

1. High-strength base frame
3. Stainless steel pipes
4. Oil filtration system
5. Vibration isolator
► Coupling Connection
Coupling between engine and alternator dampens rotational vibrations and load surge, and limits torque to protect the
actuator from overload.
► Integrated Oil Filtration System
Equipped filters separate dust, metal scraps, carbon deposit etc. efficiently and restrain abrasion of engine parts for
example crankshaft to prolong the unit's lifetime.

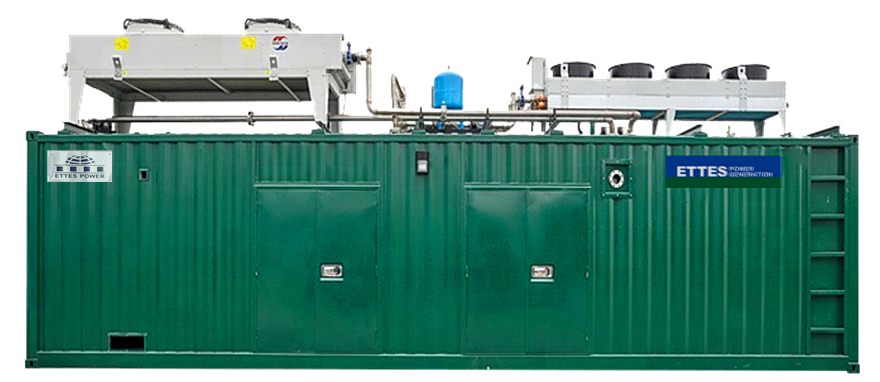

► Standard Container Frame
Made of corten steel. the container is manufactured
as ISO standard container and accordant with shipping
regulations and CSA certificate. Stainless steel bolls
and locks are installed on the exterior of container for
corrosion resistance and long life.
► High-strength Base Frame
High quality steel monocoque base frame with reinforcement design is manufactured with advanced welding technology.
► Flexible Exhaust Bellows
Bellows installed between exhaust manifold and silencer keeps exhaust assembly in flexible connection, depresses vibration and noise and prolongs the service life of exhaust system.
► Vibration Isolators
Vibration isolators with high capability are installed between engine/alternator and base frame, and anti-vibration capability of CHP unit is in accordance with GB/T2820.9.
► Accordant with Emission Requirement
Advanced gas engine emission control lower NOx and CO2 by 60-80% and S02 and dust to nearly zero compared with coal and fossil energy. Baseframe adopts waterproof design to avoid leakage of coolant and lube oil.
● CHP solves the problem of waste disposal and protects
the environment. Electricity produced meets the local demand and public grid. Heat produced is recovered to optimize the living condition.
● With purification treatment, associated gas can be used as
the fuel of CHP units to supply continuous power and heat for
oil field drilling and guarantee the normal production.
● About 100-200m3 landfill gas with the heat value of 3.5-5.5kWh/m3 is produced per 1 ton landfill. It is a high-quality
fuel used on the CHP units, and so this saves energy and protects the environment.
