ETTES POWER PARALLEL & SYNCHRONIZATION SYSTEM

ETTES POWER AUTO TRANSFER SWITCH (ATS) FOR GENSET

MAIN DESCRIPTION

For ETTES Diesel & Gas Engine Generators, by using inbuilt device with synchronization, power matching and paralleling functions, the controller can be synchronized with the mains, uninterruptedly returning when reaching the peak;Can parallel up to 32 generator sets as a group.

Multiple languages display;
Root mean square value voltage measurement;
Optional power measurement device;
Optional communication ability function, automatic synchronization indication function;
Inbuilt or expansion relay outputs.
Control cabinet for gas generator set-ETTES POWER
Control Cabinet for Gas generating Set & CHP ETTES POWER
Central Control Center-Coalmine Gas Power Generation-ETTE POWER
Control & Monitor Center for gas generator power station ETTES POWER
Control Panel & Control system for engine generating set-ETTES POWER
Parallel & Synchronization Control Centre Natural Generators Power Station ETTES POWER
Parallel & Synchronization Control Panel Gas Generator Power Plant-ETTES POWER
Parallel Control Panel Diesel Gas Engine Generator Power Plant Generation-ETTES POWER
Parallel Control Panel Natural Gas Biogas Engine Generation Power Station-ETTES POWER
Parallel Control Panel System Gas Engine Generator Power Plant-ETTES POWER
Parallel Synchronization Control Panel ComAp Controller Gas Engine Generator Generation ETTES POWER
Parallel Synchronization Control Panel-Breaker Diesel Gas Engine Generation-ETTES POWER
Parallel Synchronization Panel Control system for gas Power Plant ETTES POWER
PControl Panels Gas Engine Generators ETTES POWER
Testing room natural gas engine generator set-ETTES POWER
Niger Oilfield Natural Gas APG Generator Power Station ETTES POWER
4x1MW Oilfield Associated Petroleum Gas Engines Power Plant-ETTES POWER (1)
Coalmine Methane Gas Engine Generator ETTES POWER
6x1MW Africa Oilfield Natural Gas Power Plant ETTES POWER
Soundproof Canopy Gas Generator sets to NNPC Oilfields Nigeria ETTES POWER
6x1000kW Container Natural Gas Generators Power Plant -ETTES POWER

TYPICAL DIAGRAM OF PARALLEL & SYN SYSTEM

Typical power station diagram of parallel & synchroniztion system ETTES POWER

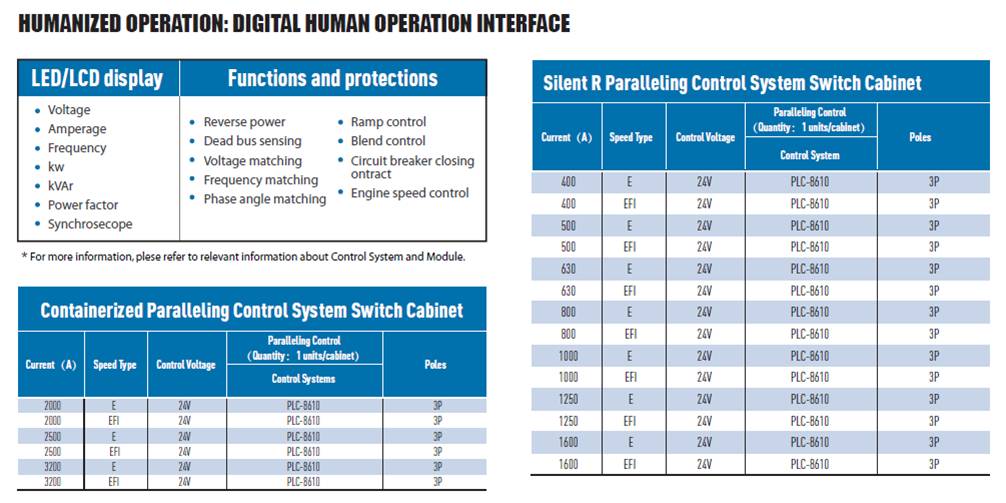

TECHNICAL CATALOGUE OF PARALLEL CABINET

paralleling control cabinet for diesel & gas power generation ETTES POWER



BENEFITS OF ETTES PARALLEL GENERATIONS


For ETTES power station,the parallel gensets system has significantly advantages over single large generator set. And, with the advanced digital control technologies, it has now become much easier to operate and maintain parallel systems.

Reliability

The parallel operation of multiple diesel & gas generating sets provides greater reliability than single-large-sized power generation unit for critical loads.If one unit fails, the critical loads are redistributed among other units in the system on a priority basis. In many environments, the critical loads that need the highest degree of reliable backup power usually account for only a fraction of the overall power generated by the system. In a parallel system, this means that the most critical elements will have the redundancy necessary to maintain power even if one of the units fails.

Expandability

When sizing generators to match you load requirements, it is often difficult to accurately project increases in load and adequately plan for anticipated additional requirements. If load projections are aggressive, your initial investment in a generator may be higher than necessary. On the other hand, if load projections are inadequate, you may be left without reliable standby power or may have to resort to expensive generator upgrades, or even purchasing another unit altogether.

By operating systems in parallel, it is easier to allow for variations in load without overrunning your budget or piling up expensive units that rarely get used. As long as you have enough physical space in power station, generators can be added for additional power supply when required. Similarly, redundant generators can be detached from the unit and can be used separately at other sites.

Flexibility

Using multiple engine generator sets in parallel offers greater flexibility than using a single large generator. Multiple smaller units operating in parallel do not need to be grouped together and can be located in a distributed fashion lessening the need for one very large footprint for a single, larger generator. Rooftop installations or setting up small-sized generators in limited areas are just a few ways you can creatively find ways to make them fit. Since the units do not require a collective large space that have to be side by side, these can often be installed in small facilities or whenever space is a restricting factor.

Ease of maintenance and serviceability

If one generating set in the system breaks down or requires maintenance, individual units can be dismantled and serviced without disrupting  the functioning of other units. The redundancy inherent in a parallel system provides multiple layers of protection and ensures an uninterrupted supply of power for critical circuits.

Cost-effectiveness and Quality Performance

Individual generators operating in parallel are typically of smaller capacities. The engines used in these generators are usually industrial, on-road or high-volume engines designed with advanced manufacturing technology that gives them a high degree of reliability and low cost of generation per unit of power.


Compliance Standards


Prevailing Industry Standards: ISO3046,ISO8528,GB2820, BS5000PT99,AS1359,IEC34, DIN6271, BS5514.
ISO Standards: ISO9001:2008, ISO14001, ISO45001 (former OHSAS 18001)
National & Regional Comformity Standards: CE, UL, EPA, CSA and SONCAP etc.
Third Party Verification: SGS, CCS, BV, ABS, and DNV-GL etc.
