You are here: Home / Intelligent Control System

Ettes Power Solutions

Download

Follow Us:

ETTES INTELLIGENT CONTROL SYSTEM


For all ETTES Gas engine generators & CCHPs (main fuels: natural gas and biogas, power ranging from 20Kw to 2000Kw, driven by engine brands of Cummins, Perkins, MAN and MWM etc), they are coupled with advanced ECC300 Fully Intelligent Control System, with ETTES’ patent product, reaching the first class all over the world and enjoying high appraisal and Recognition from our global customers.



Control & Breaker system of natural gas engine generator & CHP ETTES POWER
Control Panels & Breaker Panels for biogas CHP system ETETS POWER
Control & Breaker system of natural gas CHP Power station ETTES POWER
MAN MWM Methane Gas Engine Generator & CCHP 300kW 500kW ETTES POWER
PControl Panels Gas Engine Generators ETTES POWER
Central Control Center-Coalmine Gas Power Generation-ETTE POWER
Control & Monitor Center for gas generator power station ETTES POWER
Parallel Control Panel Natural Gas Biogas Engine Generation Power Station-ETTES POWER

ABOUT ETTES ECC300 CONTROL SYSTEM

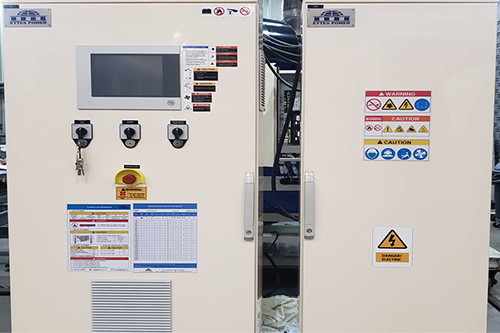

Control Panel MAN MWM Series Gas Genset ETTES POWERFor monitoring, controlling, regulating and system protection.

ECC300 is an expandable controller for both single and multiple

gen-sets operating in standby or parallel modes, especially

in cogeneration (CHP) and other complex applications. Modular

design (consisting of AIO controller and display unit) allows

easy installation with the ability to add many different

extension modules designed to suit individual customer

requirements. Integrated functions such as fully

automatic synchronization or unin-terruptible back-synchronisation

 in mains parallel operation as well as integrated solutions for

multi-unit operation, load sharing or automatic operating

hours adjustment of the individual units are standard features

of the AIO generator & CHP control system. Up to 32 units can

be combined in one group.AIO supports many standard

ECU (electronic control unit) types from which it can read

relevant control data via Bus. A powerful graphic display with user-friendly controls allows any operator to find the information they need. The display on the basic version is capable of displaying graphical characters (e.g. Chinese).



Benefits

Intelligent control system of biogas generator set & CHP ETTES POWERSupport of engines with ECU (Electronic control unit)
Individually configurable to match customer’s needs exactly
Complete integrated gen-set solution incorpo- rating built-in PLC and signal sharing via CAN bus – minimum external components
needed

● Many communication options – easy remote supervising and servicing

Perfect price / performance ratio

Gen-set performance log for easy problem tracing

● Air/Fuel Ratio function for lean burn gas engines (requires additional hardware dongle)





Features

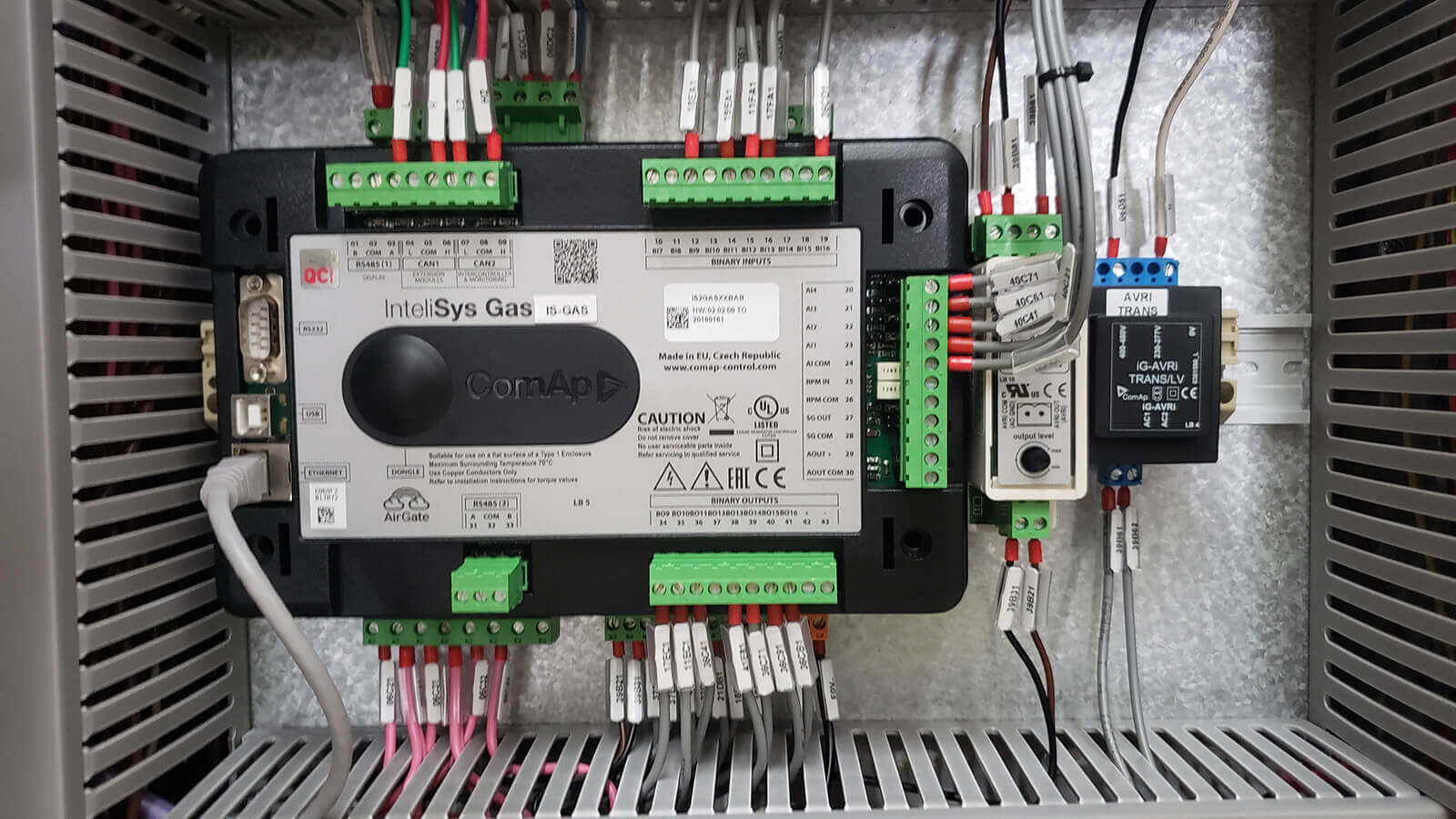

● CHP support (programmable PID control loops and other built-in PLC functions)ComAp IS-NT Control System for MAN 400kW Biogas Generator-ETTES POWER

Support of engines with ECU (J1939, Modbus and other proprietary interfaces); alarm codes displayed in text form

Automatic synchronizing and power control (via speed governor or ECU)

● Base load, Import/Export, Temp by Power

Peak shaving

● Voltage and power factor control (AVR)

Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

Mains measurement: U, I, Hz, kW, kVAr, PF

Selectable measurement ranges for AC voltages and currents – 120/277 V, 0-1/0-5 A

Inputs and outputs configurable for various customer needs

Controller redundancy

2× RS232/RS485 interface with Modbus protocol

Support; Analog/GSM/ISDN/CDMA modem communication support; SMS messages; ECU Modbus interface; secondary RS485 converter is isolated

Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values

● Integrated PLC programmable functions

Interface to remote display units

USB 2.0 slave interface

Sealed to IP65



Integrated fixed and configurable protections

 3 phase integrated generator protections (U+f)Control System of ComAp for biogas generator & CHP ETTES POWER

IDMT overcurrent + shortcurrent protection

Overload protection

Reverse power protection

Earth fault current protection

3 phase integrated mains protections (U+f)

Vector shift protection

All binary/analog inputs free configurable for various protection types

Phase rotation and phase sequence protection

Additional 160 programmable protections configurable for any measured value to create customer-specific protections

Application security

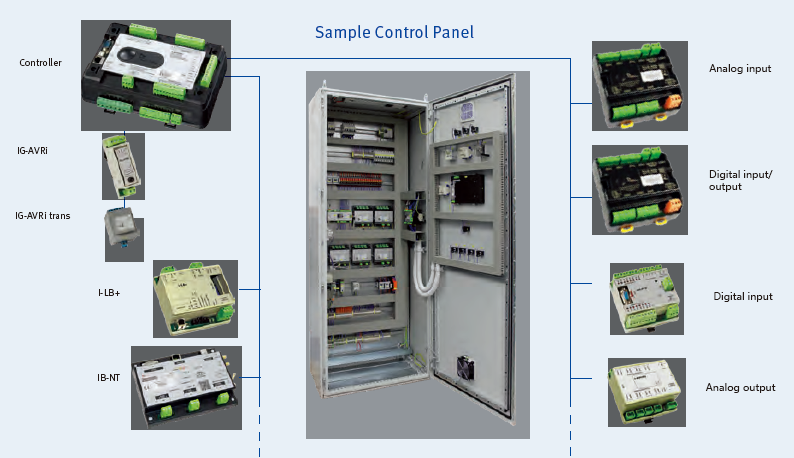

ETTES SYSTEM OVERVIEW

Fully-Intelligent-Control-System-ETTES-POWER

ETTES NEW PRODUCT (10.4'' VISION)

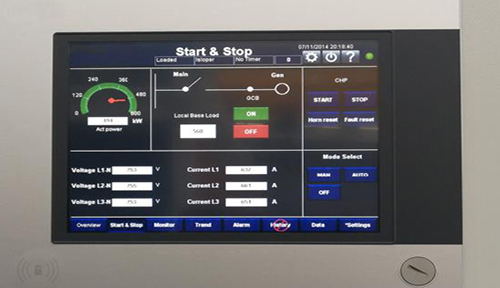

● Complete access to all control and monitoring functions of a unitAutomatic gas generator & CHP control system with touch screen ETTES POWER

● 10.4 inch colour touch display, TFT display

Resolution 640 x 480 pixel

● Power consumption 8-36 VDC

● Operating temperature -30 °C to + 70°C

 Communication connection via RS-485

● USB flash drive

● Plug-and-play operation (Auto configuration based on the controller application)

● Quick and intuitive navigation

● Touch-based graphical user interface.

Adaptive alarm list

History logs

● Multilingual support

Advanced trend monitoring screen

● Adjustable set points help

● Automatic brightness control

● Robust aluminum housing

● Chemically hardened front glass

Front protection compliant with IP65

● Sun readable display

Integrated, easy to install mounting system

Designed for installation in monitoring and engine room
