About Combined Heat and Power-CHP

Ettes Power, as a leading manufacture for methane gas engine generator set and Gas CHPs in China, can supply gas cogenerations power ranging from from 20kW upto 2000kW, by adopting world top gas engines like Cummins, MAN, MWM, Perkinsand CNPC 190 Series, our products enjoy hot market in more than 70 countries all over the world.

In addition to standard gas engine generating set (open skid mounted type), we can satisfy various requirements from the clients and make tailored design, including gas treatment device, desulfurization tower, soundproof canopy/enclosure, modular container, parallel and synchronization system, CCHP, Trigeneration, DER System, power plant technical consulting & design and turnkey project etc.

CHP-Cogeneration trigeneration ETTES POWER

High-efficiency





Environmentally friendly



Energy saving



Powerful

Comprehensive advantage ETTES CHP/CCHP

 Efficient and environmentally friendly energy utilization technology



• Achieve the energy cascade utilization of heat, power

and cooling with up to 90% overall energy utilization rate

• No need to transport and distribute and no distribution loss

• Compared with traditional fuel coal and fossil energy, reduce the emission of NOx and CO2 by 60%-80% with nearly zero S02 and dust emission

The fuel of ETTES cogeneration and tri-generation Units can

be natural gas(PNG, CNG, LNG), such as marsh Gas, shale gas, coal mine gas/coal bed gas, associated petroleum gas(APG)/

oilfield gas ,or some special gases such as methane biogas, landfill gas(LFG),farm gas, digester gas, agricultural gas, manure gas and sewage gas, wastewater gas etc.

 High-quality Product Design System



Advanced-design-of-gas-power-generation-CHP-System-ETTES-POWER1000kW Perkins container natural gas generator &CHP ETTES POWER

 Perfect Products Manufacturing System



Module-design-for-low-noise-biogas-generator-CHP-unit-ETTES-POWERSwitch-control-cabinet-of-natural-gas-generating-set-ETTES-POWER

 The functions of ETTES CHP system

Efficient CHP equipment with green energy to lower cost

 Independent on-site energy with small footprint

 Suitable for different gas compositions and types with output meeting

 the standard of natural gas set

 Intelligent control system achieving comprehensive and effective monitor

 Instead of diesel oil saving long-distance transportation cost

Durable parts for continuous 50,000 service hours

 Containerized CHP unit for quick installation and running



Safe and reliable distributed energy

 Cooling system, heating system and power system are put into module

and distributed around users, making energy utilization safe and reliable

 Main elements of the product: gas engine, generator, heat exchange system and intelligent control system

 Suitable for large commercial communities, hotels, residential buildings,

 etc.



Technical Features of ETTES CHP System



Highly efficient gas engine with stable and strong power



Lean combustion technology with high air/fuel ratio



Automatic oil refilling system



Natural and forced ventilation integration technology



Frequency conversion control technology for fans







 Many advanced technologies integrated



Module-design-for-silent-and-container-gas-generator-CHP-ETTES-POWER



    1. Gas engine



    2. Synchronous alternator



    3. Gas train



    4. Heat exchanger-exhaust gas or water



    5. Daily oil tank



    6. Control cabinet



    7. Ventilation duct






Intact configuration and controlFreestanding-design-of-switch-control-panel-for-biogas-generator-CHP-ETTES-POWER



• Touch-screen operation control system



• Electronic ignition control system based on microprocessor



• Exact speed control system for high stability of frequency



• Power output through air cooled synchronous generator



• Heat recovery through coolant and exhaust exchangers



• Integrated control cabinet with comprehensive monitor,



control and protection



Module design

Module-design-for-500kW-MAN-soundproof-gas-generator-cogeneration-ETTES-POWER

• Fuel input system, power output system and heat output



systems all adopt module design for convenient and fast



installation and use



• Access doors is easily dismountable



• Outdoor type units can be used directly outdoors without



engine rooms



Advanced waste heat recovery system



The power produced during the unit operation can meet

the demand of users, at the same time a mass of heat in

the jacket water and exhaust gas can be recovered through

heat exchangers, heat recovery boilers and chillers to

provide users heat and cooling



Paralleling functions





• Several units can run in paralleling mode for heavy-duty Multiple-generator-sets-parallel-fans-frequency-conversion-control-technology-ETTES-POWER

demand and automatically parallel or disconnect according

to the changes of load



• Paralleling with mains can output power to mains, replace

it or operate for peak shaving





Multiple working modes and control methods



• All power control switch, oil filling control switch, fan modes

control switch can be operated easily

• Operation of fans can be controlled automatically or manually





Frequency conversion control technology for fans



• No need to start fans in low temperature



• Start several fans in medium temperature to both supply

power and low gas consumption

Humanized Design and Intelligent Control



► Automatic operation system with touch screenAutomatic-cogeneration-control-system-with-touch-screen-ETTES-POWER



● 10-inch colored touch display screen for easy data reading



● Intact parameter monitor and control of fuel, engines



and generators



● Monitor and control of pumps, valves and fans



● Local or remote monitor and control



● Automatic oil refilling system for continuous unit running



● Extensible input and output control meeting the users



localization demands







Intelligent-control-system-of-gas-generator-set-CHP-ETTES-POWERControl-System-of-ComAp-for-biogas-generator-CHP-ETTES-POWER



► Paralleling and control cabinet



● Integrated paralleling and control cabinet as standard configuration with IP54 protection



● Internal integrated controller and electrical equipment



● Paralleling function with other units or mains and control and protection functions



● Master control system for whole unit with interface to higher level control unit



● Easy paralleling with mains in peak shaving mode, output to mains mode or isolated mode





Automatic charging systemLighting-system-power-switch-cabinet-for-gas-container-CHP-units-ETTES-POWER



Automatically check the voltage of the battery ensuring the

voltage in the applicable range and the unit can start at any time



Power switch cabinet

With IP54 protection and internal integrated electrical

components such as main breaker, CT, VT and busbar, the

cabinet control output of power



Lighting system



Interior lighting system provides sufficient lighting for

convenient daily maintenance and service



Controller communication interface



For remote monitor and other communication functions



Automatic oil refilling system



The oil level controller monitors the engine oil at any time.

When the level is lower than the set point, daily auxiliary oil Automatic-oil-refilling-system-ETTES-POWER

pump will fill automatically until reaching the set point. With

big-size inspection window, the oil level controller is convenient

to check the oil level



Support OSC(online and offline service center)

service system



● Easy connection to the computer for convenient data share

and control



● Achieving remote monitor and inspection, inspection aid

and faults diagnosis



● Running status monitored and parameter feedback of all

 units which have been delivered

High Safety



Products are fitted with many kinds of sensors and safety valves, integrating control, measurement and protection functions





► Cylinder temperature protection systemGas-train-of-MAN-biogas-CHP-system-ETTES-POWER



Cylinder temperature sensors or exhaust manifold temperature sensors can measure the combustion or exhaust gas temperature and send signals to the control system to monitor engine's operation condition and ensure normal operation



► Detonation control system



Based on the signals from sensors, the controller sends out analog signals to ignition system after processing so as to adjust ignition timing, reduce load or shutdown to avoid detonation
Ignition-coil-of-500kW-MAN-Container-engine-generator-CHP-ETTES-POWER



► Gas leakage protection device



This avoids gas leakage and once the gas leaks, gas pipeline will

be turned off and alarms will be sent out



► Lightning protection device



The device can introduce lightning into the earth and protect

personnel and equipment from lightning stroke





► Smoke alarm systemSmoke alarm system ETTES POWER



Internal smoke status is detected in time and once excessive smoke is detected, the system would send out a warning to prevent fire spreading or explosion



► Electrical inlet and outlet shutter



The shutters control inlet and outlet automatically, i.e. close shutters when CHP unit stops or open them when CHP unit starts,

thus these achieve automatic adjustment and prevent small

animals entering into the unit when it stops. Once gas leakage

happens, they are closed automatically to isolate internal air Remote-radiators-of-gas-generator-CHP-unit-ETTES-POWER

and prevent explosion

► Air circuit breaker



Well-known brand breaker is integrated Into breaker cabinet with

control and various protection functions against overload short circuit, under voltage etc



► Emergency radiator



When the heat load is lower, the radiator is Electrical-inlet-and-outlet-shutter-for-containerized-gas-generating-set-CHP-ETTES-POWERused to cool jacket water and turbocharged mixture to keep coolant and suction mixture temperature in permissible range



► Separation of heavy current and light current



All the cables have protective covers with support and fixation device



High Durability

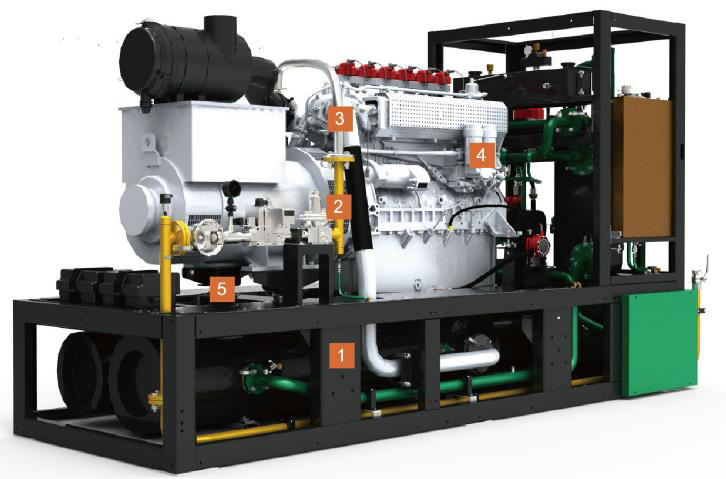

Module-design-for-soundproof-gas-generator-CHP-ETTES-POWER



1. High-strength base frame



2. Coupling



3. Stainless steel pipes



4. Oil filtration system



5. Vibration isolator










Coupling connection



Coupling between engine and alternator dampens rotational vibrations and load surge, and limits torque to protect the

actuator from overload



Integrated oil filtration system



Equipped filters separate dust, metal scraps, carbon deposit etc. efficiently and restrain abrasion of engine parts for

example crankshaft to prolong the unit's lifetime





Standard container frame


Diagram-of-High-efficiency-Environmentally-friendly-gas-CHP-System-ETTES-POWER

Made of corten steel. the container is manufactured

as ISO standard container and accordant with shipping regulations and CSA certificate. Stainless steel bolls

and locks are installed on the exterior of container for

corrosion resistance and long life





High-strength base frame

High quality steel monocoque base frame with reinforcement design is manufactured with advanced welding technology





Flexible exhaust bellows

Bellows installed between exhaust manifold and silencer keeps exhaust assembly in flexible connection, depresses vibration and noise and prolongs the service life of exhaust system



Vibration isolators

Vibration isolators with high capability are installed between engine/alternator and base frame, and anti-vibration capability of CHP unit is in accordance with GB/T2820.9



Accordant with emission requirement

Advanced gas engine emission control lower NOx and CO2 by 60-80% and S02 and dust to nearly zero compared with coal and fossil energy. Baseframe adopts waterproof design to avoid leakage of coolant and lube oil



Application of Special Gas

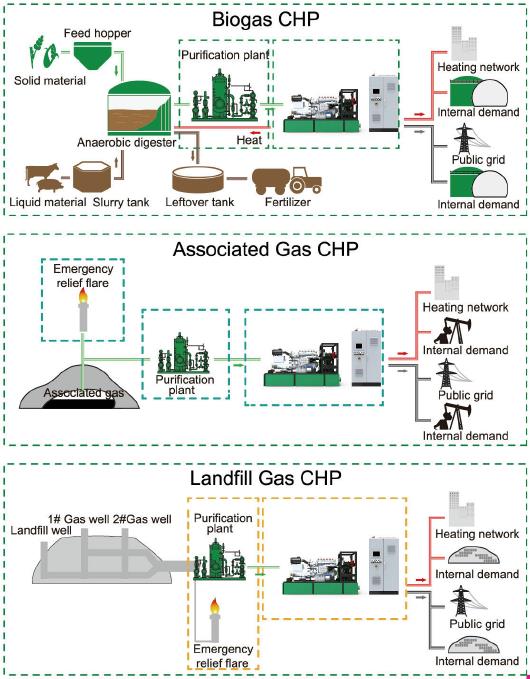

Diagram-of-methane-gas-engine-generator-CHPs-ETTES-POWER

● ETTES Methane gas engine generator & CHPs solves the problem of waste disposal and protects the environment. Electricity produced meets the local demand and public grid. Heat produced is recovered to optimize the living condition.



● With purification treatment, associated gas can be used as

the fuel of CHP units to supply continuous power and heat for

oil field drilling and guarantee the normal production.



● About 100-200m3 landfill gas with the heat value of 3.5-5.5kWh/m3 is produced per 1 ton landfill. It is a high-quality

fuel used on the CHP units, and so this saves energy and protects the environment.

Compliance Standards

Prevailing Industry Standards: ISO3046,ISO8528,GB2820, BS5000PT99,AS1359,IEC34, DIN6271, BS5514.
ISO Standards: ISO9001:2008, ISO14001, ISO45001 (former OHSAS 18001)
National & Regional Comformity Standards: CE, UL, EPA, CSA and SONCAP etc.
Third Party Verification: SGS, CCS, BV, ABS, and DNV-GL etc.
