MAN Marine Power Package
Ettes Power
EMM Marine Series
| Availability: | |
|---|---|
► About MAN Marine Engines
400kW~2000kW, Most Optimized Design, Most Fuel-efficient, High Reliable, Low Emissions
As a leading manufacturer and packager for complete marine diesel generator sets, Ettes marine generations are driven by world top engines brands of Cummins, MWM-Deutz and MAN seris, coupled with alternators of Leroy Somer, Stamford, Siemens and ABB series etc, which enjoy hot markets and high reputation in more than 70 countries all over the world.
Ettes MAN series marine auxiliary generators driven by medium speed engines of L16/24 and L21/31 Series based on cylinders number of 5, 6, 7, 8 and 9. As a key product of Ettes Power generators, MAN series marine generations are vastly used in application fields like Cargo ships, Coastguard & patrol boats. Dredging, Ferries, Fishing, Motor boats, Offshore support, Tugs, Yachts and military vessels etc.
Liquid fuel engines made by MAN Energy Solutions are capable of working with the broadest range of liquid fuels and viscosities. Fossil fuels usable in liquid fuel engines include crude oil, heavy (residual) fuels and distillate diesel oils. Renewable fuels include vegetable oils, animal fats and second-generation bio fuels (such as biomass-to-liquid fuels).

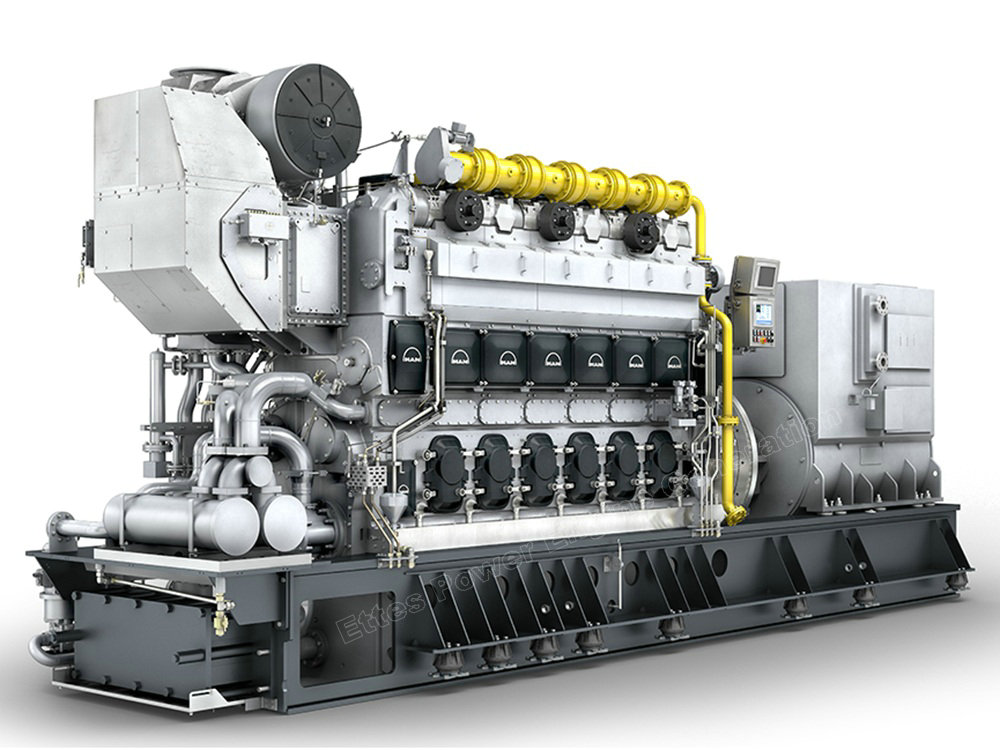

► Ettes Power MAN Marine Diesel Generators
With over 20 years of experience in R & D and manufacturing, Ettes Power supply high quality marine engine generations to global markets. The marine power generator set can be driven by world top marine diesel engines brands of Cummins, Deutz-MWM and MAN Series, coupled with Stamford, Marathon, ABB or Siemens alternators and top control modules of DEIF, CompAp or Woodward etc.
• Power ranging from 400kW upto 2000kW.
• Widely application fields: Ettes brands marine generators have been widely used as main power, marine emergency power for
• Cargo ships • Coastguard & patrol boats • Dredging • Ferries
• Fishing • Motor boats • Offshore support • Tugs • Yachts
• Adopted engine series: Ettes mainly use MAN series speed engines of L16/24 and L21/31 Series based on cylinders number of 5, 6, 7, 8 and 9. to fabricate complete marine power station.
• Marine classification society: for Ettes power marine diesel gensets, based on Solid IMO Tier 2 / EPA Tier 3 / EU Stage IIIa and EIAPP, the standard marine certificate is CCS, we also can supply ABS, BV, DNV-GL, ClassNK, LR, RS and KR etc for customer’s options.
• Strong warranty & Guarantee Policy: for each Ettes power marine generation, Ettes supply one year warranty, life-span technical support & spare parts at manufacture price. Furthermore, all MAN engine are covered by global-united warranty and distributor service network.

Models List of MAN HFO/Diesel Marine Gensets (50Hz, 1000rpm) | |||||||||
Model | Rated Power | Engine model | Engine Power (kW/Hp) | Cyls.& Type | Dspl. (liters) | Overall Dimmension (mm) | Weight (kg) | Download | |
| kW | kVa | ||||||||
| EM-420M5 | 420 | 525 | 5L 16/24 | 450/603 | 5.L | 24.0 | 4151x1390x2354 | 9500 | ![]() |
| EM-535M5 | 535 | 669 | 6L 16/24 | 570/764 | 6.L | 28.8 | 4516x1390x2354 | 10500 |
|
| EM-625M5 | 625 | 781 | 7L 16/24 | 665/891 | 7.L | 33.6 | 5086x1390x2354 | 11400 |
|
| EM-714M5 | 714 | 893 | 8L 16/24 | 760/1018 | 8.L | 38.4 | 5456x1500x2354 | 12400 | |
| EM-803M5 | 803 | 1004 | 9L 16/24 | 855/1146 | 9.L | 43.2 | 5731x1500x2369 | 13100 |
|
| EM-940M5 | 940 | 1175 | 5L 21/31 | 1000/1340 | 5.L | 53.5 | 6607x2115x3183 | 22500 | ![]() |
| EM-1240M5 | 1240 | 1550 | 6L 21/31 | 1320/1769 | 6.L | 64.2 | 6962x2115x3183 | 26000 | ![]() |
| EM-1440M5 | 1440 | 1800 | 7L 21/31 | 1540/2064 | 7.L | 74.9 | 7327x2115x3289 | 29500 | ![]() |
| EM-1650M5 | 1650 | 2063 | 8L 21/31 | 1760/2358 | 8.L | 85.6 | 7682x2115x3289 | 33000 | ![]() |
| EM-1860M5 | 1860 | 2325 | 9L 21/31 | 1980/2653 | 9.L | 96.3 | 8062x2115x3289 | 36500 | ![]() |
Remarks:
• Above gensets data are based on 50Hz, AC400V, 3 Phases & 3 Wires, Power Factor 0.8.
• Above gensets are with CCS Marine Class as standard, BV, ABS, DNV-GL are optional.
• Above engines emissions standard is based on IMO TIER II and EIAPP.
• Special configurations for Parallel Control, Remote Control and Firefighting system are available for options.
• Above marine engine generators are based on air starting system.
• For MAN marine engines, the suitable fuels can be light diesel or crude oil/HFO.
• All data provided on this site is for information purposes only, explicitly non-binding and subject to changes without further notice.
Models List of MAN HFO/Dieses Marine Gensets (60Hz, 1200rpm & 900rpm) | |||||||||
Model | Rated Power | Engine model | Engine Power (kW/Hp) | Cyls.& Type | Dspl. (liters) | Overall Dimmension (mm) | Weight (kg) | Download | |
| kW | kVa | ||||||||
| EM-470M5 | 470 | 588 | 5L 16/24 | 500/670 | 5.L | 24.0 | 4151x1390x2354 | 9500 | ![]() |
| EM-620M5 | 620 | 775 | 6L 16/24 | 660/884 | 6.L | 28.8 | 4516x1390x2354 | 10500 |
|
| EM-720M5 | 720 | 900 | 7L 16/24 | 770/1032 | 7.L | 33.6 | 5086x1390x2354 | 11400 |
|
| EM-827M5 | 827 | 1034 | 8L 16/24 | 880/1179 | 8.L | 38.4 | 5456x1500x2354 | 12400 | |
| EM-930M5 | 930 | 1163 | 9L 16/24 | 990/1327 | 9.L | 43.2 | 5731x1500x2369 | 13100 |
|
| EM-940M5 | 940 | 1175 | 5L 21/31 | 1000/1340 | 5.L | 53.5 | 6607x2115x3183 | 22500 | ![]() |
| EM-1240M5 | 1240 | 1550 | 6L 21/31 | 1320/1769 | 6.L | 64.2 | 6962x2115x3183 | 26000 | ![]() |
| EM-1440M5 | 1440 | 1800 | 7L 21/31 | 1540/2064 | 7.L | 74.9 | 7327x2115x3289 | 29500 | ![]() |
| EM-1650M5 | 1650 | 2063 | 8L 21/31 | 1760/2358 | 8.L | 85.6 | 7682x2115x3289 | 33000 | ![]() |
| EM-1860M5 | 1860 | 2325 | 9L 21/31 | 1980/2653 | 9.L | 96.3 | 8062x2115x3289 | 36500 | ![]() |
Remarks:
• Above gensets data are based on 60Hz, AC440V, 3 Phases & 3 Wires, Power Factor 0.8.
• Above gensets are with CCS Marine Class as standard, BV, ABS, DNV-GL are optional.
• Above engines emissions standard is based on IMO TIER II and EIAPP.
• Special configurations for Parallel Control, Remote Control and Firefighting system are available for options.
• Above marine engine generators are based on air starting system.
• For MAN marine engines, the suitable fuels can be light diesel or crude oil/HFO.
• All data provided on this site is for information purposes only, explicitly non-binding and subject to changes without further notice.
