Perkins 4000 Series

Ettes Power Perkins series Diesel gensets, ranging from 10kVa to 2500kVa, high quality & performance, acting as one of the most reliable power supply resources all over the world.
  • Perkins Power Package

  • Ettes Power

  • EP Diesel Series

Availability:



About Perkins Diesel Engine

Ettes Power is the leading manufacturer and supplier for diesel & gas generators from 20kW upto 3000kW. We can use world top engines (Cummins, Perkins, MTU, MAN, MWM, Deutz, CNPC 190 Series, Low speed 300 Series etc.) to ASSEMBLE complete-generator-set. Ettes gensets enjoy hot markets in more than 70 countries all over the world including Latin America, Africa, Middle East, Europe and Asia markets.


► Benefits of Perkins Engines


Ettes Power Perkins Diesel Generating Set, power ranging from 10kVa upto 2500kVa. Perkins is the world top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 2,000 kW (5 - 2,800 hp) market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Perkins global product support is provided by 4,000 distribution, parts and service centers. Perkins distributor network provides support wherever needed around the world and an extremely high standard is set to ensure the distribution network provides an outstanding service to all customers.


 Customs Benefits from Ettes Perklins Series Gensets

 Innovative advanced technology and system competence.

 Robust design to operate under severe conditions.

 High operational availability, easy installation and maintenance.

 Strong warranty policy and technical support from ETTES POWER.

 Worldwide united guarantee and distribution network for spare parts and engine service.

 Top materials list for complete generator set assembling and fabrication


Materials Items Brand & Specifications
Alternators Stamford AVK, Leroy Somer or Mec calte
Control System
Deepsea, ComAp or DEIF
Base Frame U-Steel Strong Baseframe
Air Circuit Breaker/Switchgear ABB, Schneider, Eaton or Siemens
Special Configuration

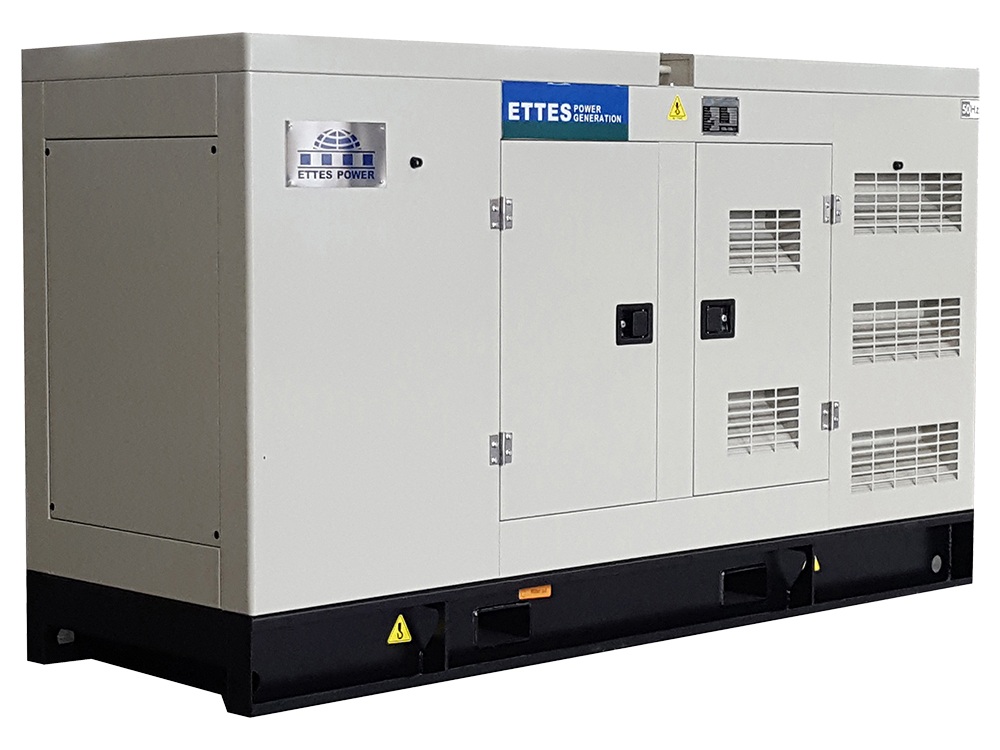

Common soundproof canopy

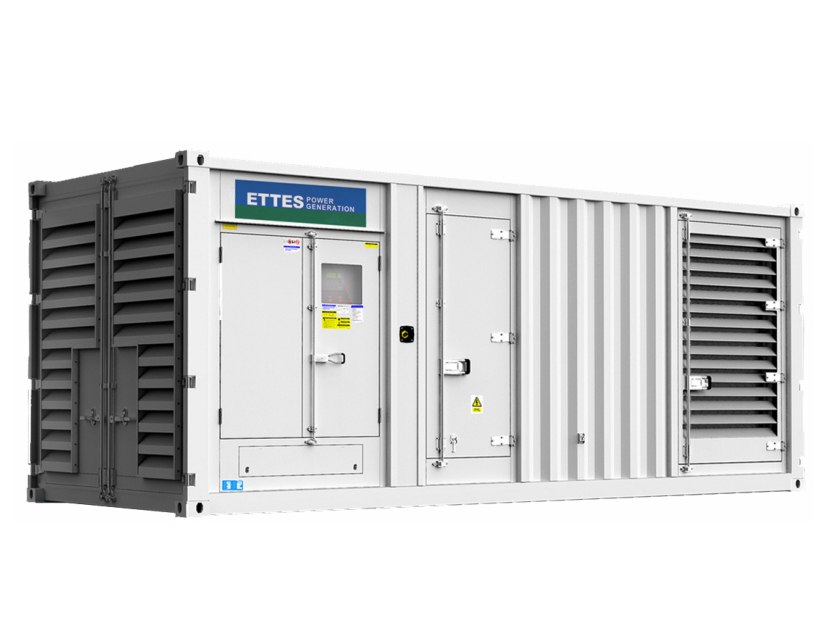

20 & 40 feet modular container

Weatherproof enclosure & trailer

ATS/ACS system (automatic transfer switch)

Synchronization parallel control panel

Remote control & Scada system

Oil & cylinder water heater

Anti-condensation heater (space heater)

Digital AVR, AREP/PMG system

IP44 protection level & B class temperature rise

High voltage alternator (3.3kV, 6.3kV, 10.5kV)

---


Perinks Gensets List (50Hz, 1500rpm)
Model Prime Power Standby Power

Engine Model

Max Power

(kW/Hp)

Cyls.&

Type

Dspl.

(L)

Overall

Dimmension

(mm)

Weight

(kg)

PDF

D/L

kW kVa kW kVa
EP-10 7 9 8 10 403A-11G1★ TBA 3.L TBA 1150*500*1100 280 click download pdf
EP-15 10 13 11 15 403A-15G1★       TBA 3.L TBA 1250*500*1100 350 click download pdf
EP-17 12 15 13 17 403A-15G2★ TBA 3.L TBA 1250*500*1100 370 click download pdf
EP-22 16 20 18 22 404A22G1★       TBA 4.L TBA 1370*880*1450 430 click download pdf
EP-30 22 27 24 30 404D-22TG★ TBA 4.L TBA 1503*900*1200 680 click download pdf
EP-33 24 30 26.4 33 1103A-33G       TBA 3.L TBA 1560*900*1300 750 click download pdf
EP-48 35 44 38 48 1104C-44G1 TBA 4.L TBA 1650*900*1310 780 click download pdf
EP-50 36 45 40 50 1103C-33TG1       TBA 3.L TBA 1560*900*1300 750 click download pdf
EP-50 36 45 40 50 1103C-33TG2 TBA 3.L TBA 1560*900*1300 750 click download pdf
EP-66 48 60 53 66 1104C-44TG2       TBA 4.L TBA 1650*900*1310 780 click download pdf
EP-66 48 60 53 66 1103A-33TG2 TBA 3.L TBA 1560*900*1300 750 click download pdf
EP-72 52 65 58 72 1104A-44TG1★       TBA 4.L TBA 1760*760*1380 900 click download pdf
EP-88 64 80 70 88 1104A-44TG2★ TBA 4.L TBA 1760*760*1380 900 click download pdf
EP-110 80 100 88 110 1104C-44TAG2★       TBA 4.L TBA 1760*760*1380 900 click download pdf
EP-150 108 135 120 150 1106A-70TG1★ TBA 6.L TBA 2410*930*1650 1550 click download pdf
EP-150 108 135 120 150 1106A-70TAG1       TBA 6.L TBA 2410*930*1650 1550 click download pdf
EP-157 114 143 125 157 1106D-E70TAG2 TBA 6.L TBA 2410*930*1650 1600 click download pdf
EP-165 120 150 132 165 1106A-70TAG2★       TBA 6.L TBA 2410*930*1650 1600 click download pdf
EP-200 144 180 160 200 1106A-70TAG3★ TBA 6.L TBA 2550*930*1670 1800 click download pdf
EP-220 160 200 176 220 1106A-70TAG4★       TBA 6.L TBA 2550*930*1670 1860 click download pdf
EP-250 180 225 200 250 1506A-E88TAG2 TBA 6.L TBA 2600*1255*1850 2000 click download pdf
EP-275 200 250 220 275 1506A-E88TAG3       TBA 6.L TBA 2600*1255*1850 2100 click download pdf
EP-275 200 250 220 275 1306C-E87TAG6 TBA 6.L TBA 2600*1255*1850 2100 click download pdf
EP-300 220 275 240 300 1506A-E88TAG4       TBA 6.L TBA 2600*1255*1850 2200 click download pdf
EP-330 240 300 264 330 1506A-E88TAG5 TBA 6.L TBA 2600*1255*1850 2300 click download pdf
EP-330 240 300 264 330 1606A-E93TAG5       TBA 6.L TBA 2600*1255*1850 2300 click download pdf
EP-400 280 350 320 400 2206C-E13TAG2 TBA 6.L TBA 3100*1120*1788 3000 click download pdf
EP-450 320 400 360 450 2206C-E13TAG3       TBA 6.L TBA 3100*1120*1788 3200 click download pdf
EP-500 360 450 400 500 2506C-E15TAG1 TBA 6.L TBA 3400*1270*1974 4000 click download pdf
EP-550 400 500 440 550 2506C-E15TAG2       TBA 6.L TBA 3400*1270*1974 4200 click download pdf
EP-660 480 600 528 660 2806C-E18TAG1A TBA 6.L TBA 3600*1400*2100 4500 click download pdf
EP-715 520 650 572 715 2806A-E18TAG2       TBA 6.L TBA 3600*1400*2100 4600 click download pdf
EP-825 600 750 660 825 4006-23TAG2A  TBA 6.L TBA 3965*1710*2200 5480 click download pdf
EP-880 640 800 704 880 4006-23TAG3A        TBA 6.L TBA 3965*1710*2200 5500 click download pdf
EP-1000 720 900 800 1000 4008-TAG1A TBA 8.L TBA 4650*2060*2300 7450 click download pdf
EP-1100 800 1000 880 1100 4008TAG2A       TBA 8.L TBA 4650*2060*2300 7600 click download pdf
EP-1250 900 1125 1000 1250 4008-30TAG3 TBA 8.L TBA 4700*2060*2300 7850 click download pdf
EP-1375 1000 1250 1100 1375 4012-46TWG2A       TBA 12.V TBA 4800*1780*2480 9500 click download pdf
EP-1500 1100 1375 1200 1500 4012-46TWG3A TBA 12.V TBA 4880*1990*2506 9630 click download pdf
EP-1650 1200 1500 1320 1650 4012-46TAG2A       TBA 12.V TBA 4900*2000*2506 10900 click download pdf
EP-1875 1368 1705 1500 1875 4012-46TAG3A TBA 12.V TBA 5100*2170*2850 11200 click download pdf
EP-2000 1480 1850 1600 2000 4016TAG1A          TBA 16.V TBA 5710*2775*3350 13000 click download pdf
EP-2000 1480 1850 1600 2000 4016-61TRG1 TBA 16.V TBA 5710*2775*3350 13000 click download pdf
EP-2250 1600 2000 1800 2250 4016TAG2A        TBA 16.V TBA 5710*2775*3350 13500 click download pdf
EP-2250 1600 2000 1800 2250 4016-61TRG2 TBA 16.V TBA 5710*2775*3350 13500 click download pdf
EP-2500 1800 2250 2000 2500 4016-61TRG3       TBA 16.V TBA 6000*2700*3400 14000

click download pdf

Remarks:

•  Above Gensets are based on 50Hz/1500rpm, 400/230V, 3 Phases & 4 Wires, Power Factor 0.8.

•  Models with mark of "★" means the engine made by Perkins China, other models are made in UK.

•  Various low voltages and high voltage of 3.6kV, 6.3kV and 13.8kV are available for option.

•  Special requirements for Soundproof Canopy, ATS and Synchronizing Parallel System are available for option.

•  The data herein is just for purpose of reference only and not binding. The data given in the official offer is decisive.

Perinks Gensets List (60Hz, 1800rpm)
Model Prime Power Standby Power

Engine Model

Max Power

(kW/Hp)

Cyls.&

Type

Dspl.

(L)

Overall

Dimmension

(mm)

Weight

(kg)

PDF

D/L

kW kVa kW kVa
EP-12 9 11 10 12 403D-11G ★ TBA 3.L TBA 1300*690*1320 280 click download pdf
EP-18 13 16 14 18 403D-15G ★       TBA 3.L TBA 1300*690*1320 350 click download pdf
EP-20 14 18 16 20 403A-15G2 ★ TBA 3.L TBA 1300*690*1320 360 click download pdf
EP-26 19 24 21 26 404D-22G ★       TBA 4.L TBA 1470*690*1320 430 click download pdf
EP-35 26 32 29 35 404D-22TG TBA 4.L TBA 1470*690*1320 440 click download pdf
EP-40 29 36 32 40 404D-22TAG       TBA 4.L TBA 1760*760*1380 550 click download pdf
EP-69 50 63 55 69 1104D-44TG1 TBA 4.L TBA 2000*900*1550 1100 click download pdf
EP-83 60 75 66 83 1104D-E44TG1       TBA 4.L TBA 2000*900*1550 1200 click download pdf
EP-100 72 90 80 100

1104C-44TAG1/

1104D-E44TAG1 ★

TBA 4.L TBA 2150*900*1300 750 click download pdf
EP-125 90 113 100 125

1104C-44TAG2/

1104D-E44TAG2 ★

      TBA 4.L TBA 1650*900*1310 780 click download pdf
EP-157 114 143 125 157 1106D-E70TAG2 TBA 6.L TBA 1560*900*1300 750 click download pdf
EP-165 120 150 132 165

1106A-70TG1/

1106D-E70TAG3

      TBA 6.L TBA 1760*760*1380 900 click download pdf
EP-188 135 168 150 188 1106A-70TAG2  TBA 6.L TBA 1760*760*1380 900 click download pdf
EP-200 144 180 160 200 1106D-E70TAG4        TBA 6.L TBA 1760*760*1380 900 click download pdf
EP-220 160 200 176 220 1106A-70TAG3  TBA 6.L TBA 2410*930*1650 1550 click download pdf
EP-250 180 225 200 250 1106D-E70TAG5       TBA 6.L TBA 2410*930*1650 1550 click download pdf
EP-269 196 245 215 269

1506A-E88TAG1/

1506AE88TAG2

TBA 6.L TBA 2410*930*1650 1600 click download pdf
EP-275 200 250 220 275 1106D-E70TAG5        TBA 6.L TBA 2410*930*1650 1600 click download pdf
EP-313 225 281 250 313 1506A-E88TAG3  TBA 6.L TBA 2550*930*1670 1800 click download pdf
EP-344 250 313 275 344 1506A-E88TAG4       TBA 6.L TBA 2550*930*1670 1860 click download pdf
EP-375 270 338 300 375 1506A-E88TAG5 TBA 6.L TBA 2600*1255*1850 2000 click download pdf
EP-440 320 400 352 440

2206A-E13TAG5/

2206D-E13TAG2

      TBA 6.L TBA 2600*1255*1850 2100 click download pdf
EP-500 350 440 400 500

2206D-E13TAG3

/2206A-E13TAG6

TBA 6.L TBA 2600*1255*1850 2100 click download pdf
EP-550 400 500 440 550

2506D-E15TAG1/

2506D-E15TAG2

      TBA 6.L TBA 2600*1255*1850 2200 click download pdf
EP-563 410 512 450 563 2506C-E15TAG1 TBA 6.L TBA 2600*1255*1850 2300 click download pdf
EP-625 450 563 500 625 2506C-E15TAG3       TBA 6.L TBA 2600*1255*1850 2300 click download pdf
EP-688A / / 550 688

2506C-E15TAG4/

2806C-E18TAG1A

TBA 6.L TBA 3100*1120*1788 3000 click download pdf
EP-688B 500 625 550 688 2806A-E18TAG1A       TBA 6.L TBA 3100*1120*1788 3200 click download pdf
EP-750 545 681 600 750

2806A-E18TAG3/

2806C-E18TAG3

TBA 6.L TBA 3400*1270*1974 4000 click download pdf
EP-825 600 750 660 825 4006-23TAG2A       TBA 6.L TBA 3400*1270*1974 4200 click download pdf
EP-944 680 850 755 944 4006-23TAG3A TBA 6.L TBA 3600*1400*2100 4500 click download pdf
EP-975 709 886 780 975 4008-TAG1       TBA 6.L TBA 3600*1400*2100 4600 click download pdf
EP-1100 800 1000 880 1100 4008-TAG2
TBA 6.L TBA 3965*1710*2200 5480 click download pdf
EP-1375 1000 1250 1100 1375 4012-46TWG2A        TBA 6.L TBA 3965*1710*2200 5500 click download pdf
EP-1500 1100 1375 1200 1500

4012-46WTAG3A/

4012-46TAG1A

TBA 8.L TBA 4650*2060*2300 7450 click download pdf
EP-1600 1200 1500 1320 1650

4012-46TWG4A /

4012-46TAG2A

      TBA 8.L TBA 4650*2060*2300 7600 click download pdf
EP-1875 1368 1700 1500 1875 4012-46TAG3A TBA 8.L TBA 4700*2060*2300 7850 click download pdf
Remarks:
•  Above Gensets are based on 60Hz/1800 RPM, 480/270V, 3Phases & 4 Wires, Power Factor 0.8.
•  Models with mark of " ★" means the engine made by Perkins China, other models are made in UK.
•  Various low voltages and high voltage of 3.6kv, 6.3kv and 13.8kv are available for option.
•  Special requirements for Soundproof Canopy, ATS and Synchronizing Parallel System are available for option.

•  The data herein is just for purpose of reference only and not binding. The data given in the official offer is decisive.
