MTU 2000 Series

Ettes Power MTU series diesel gensets, ranging from 250kVa to 3500kVa, high quality & performance, acting as one of the most reliable power supply resources all over the world.
  • MTU Power Package

  • Ettes Power

  • ET Diesel Series

Availability:

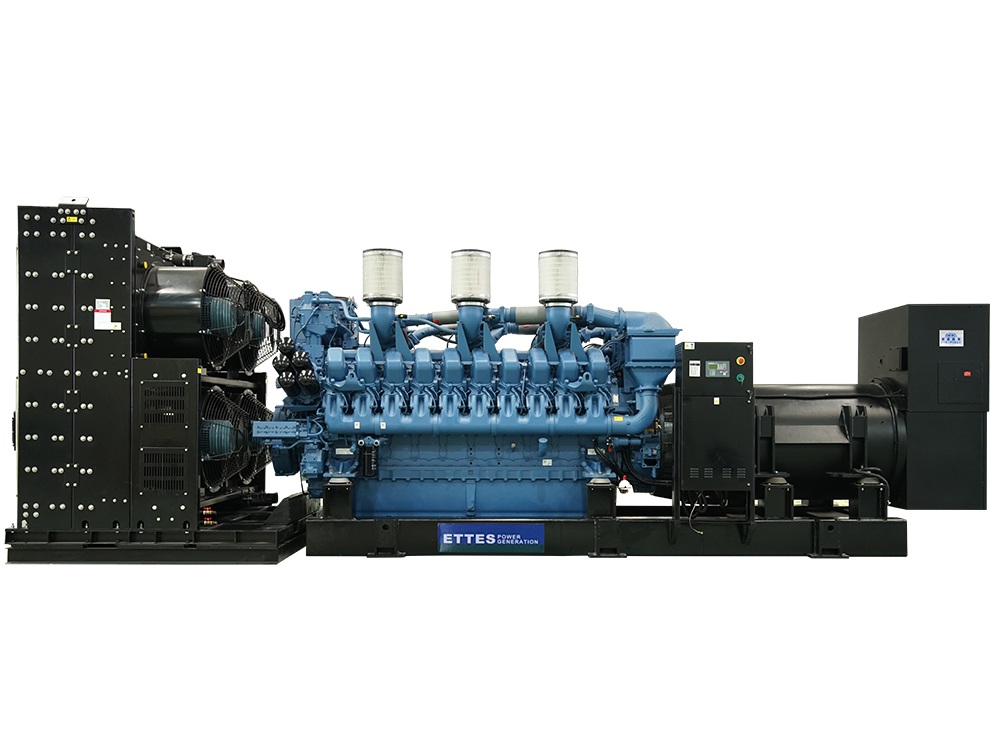

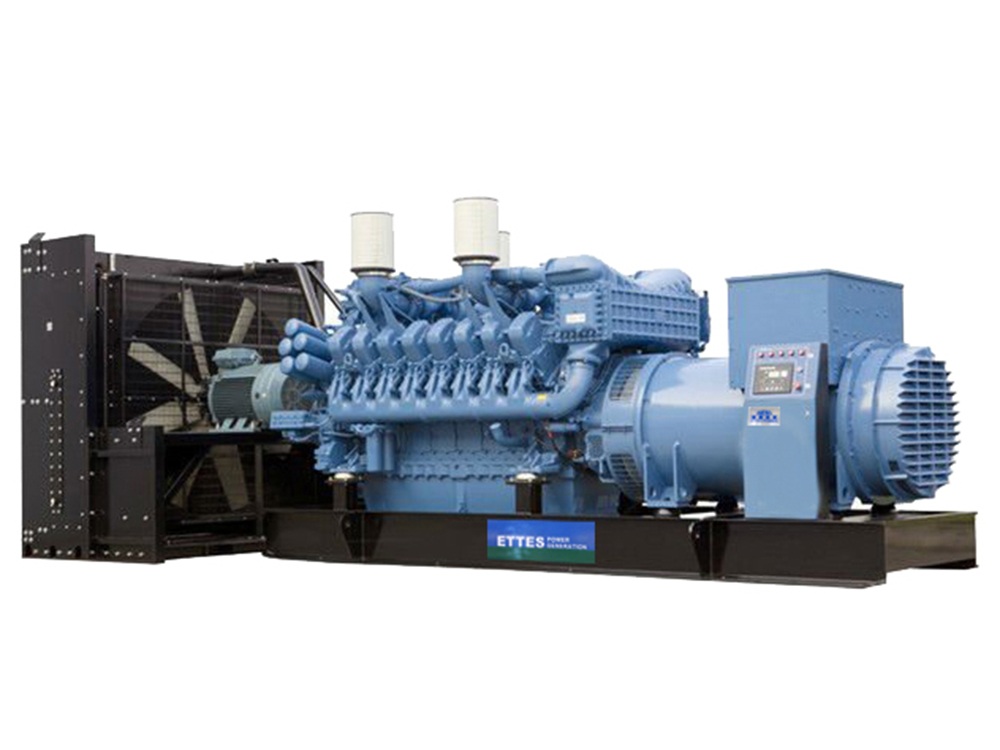

Ettes-power-MTU-diesel gas engine generator 500kVa-1000kVa-2000kVa-1MW-2MW-EttesPower-Group


About Ettes Diesel Gensets

Ettes Power is the leading manufacturer and packager for complete diesel & gas generators from 20kW upto 3000kW. We can use world top engines (Cummins, Perkins, MTU, MAN, MWM, Deutz, CNPC 190 Series, Low speed 300 Series etc.) and other top quality materials to ASSEMBLE complete-generator-set. Ettes power generations enjoy hot markets in more than 70 countries all over the world including Latin America, Africa, Middle East, Europe and Asia markets.

► About MTU Diesel Engines

MTU history can be traced back to the 18th century. MTU is the core brand of Rolls-Royce Power Systems AG, which is a world-leading provider of high- and medium-speed diesel and gas engines, complete drive systems, distributed energy systems and fuel injection systems for the most demanding requirements. Especially within the shipping sector the company has established a long and successful partnership with some ten thousands of engines in operation around the globe on all seas.



Based on its innovative capabilities, its reliability and system competence, MTU combines unique drive system know-how and a large range of products of excellent quality. MTU Engines are the ideal motors to drive diesel power plant.


 Customs Benefits for Ettes MTU Series Generations

• Wide power scope of generting sets from 200~4000kVa.

• Advanved engine design, Low noise and low fuel consumption.

• MDEC electronic monitoring system and syn rail fuel injection system.

• ADEC collection and self-inspection system, advanced electronic fuel injection.

• The best cold start performance during sunnden load increase.

• Overhaul can reach over 30000 hours, much longer than other common levels.

• Low emissions, TA LUFT as standard, CARB, EPA, CSA and UL etc.

• Strong warranty policy and technical support from ETTES POWER and MTU Global.

• Worldwide united guarantee and distribution network for spare parts and engine service.

• Top materials list for complete generator set assembling and fabrication.


Materials Items Brand & Specifications
Alternators Stamford AVK, Leroy Somer or Mec calte
Control System
Deepsea, ComAp or DEIF
Base Frame U-Steel Strong Baseframe
Air Circuit Breaker/Switchgear ABB, Schneider, Eaton or Siemens
Special Configuration

Common soundproof canopy

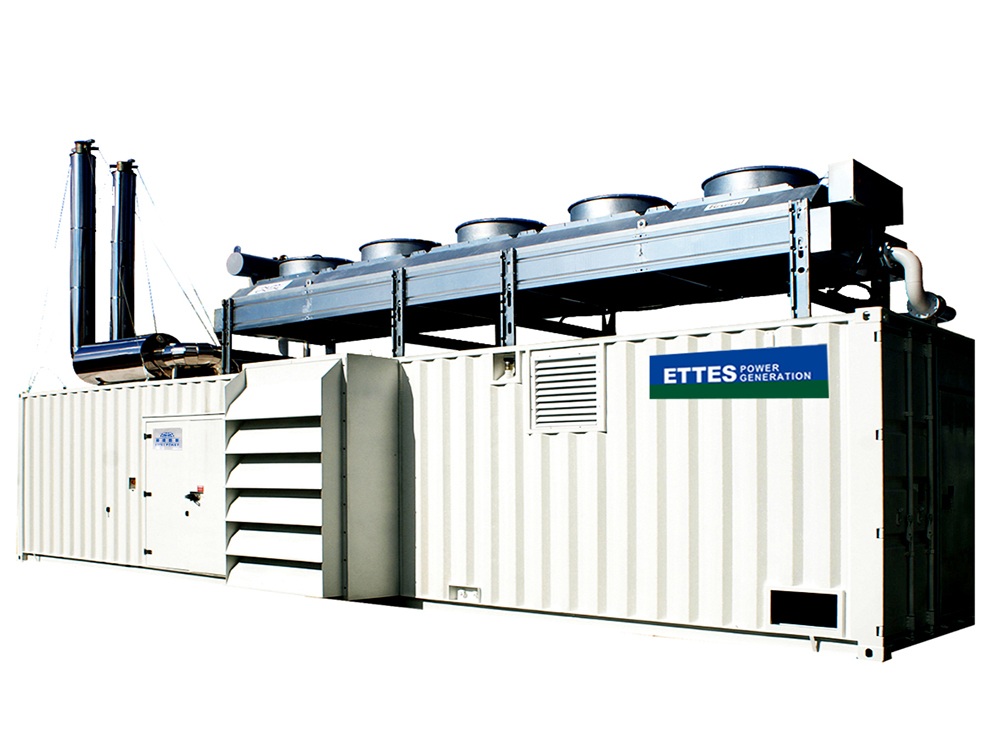

20 & 40 feet modular container

Weatherproof enclosure & trailer

ATS/ACS system (automatic transfer switch)

Synchronization parallel control panel

Remote control & Scada system

Oil & cylinder water heater

Anti-condensation heater (space heater)

Digital AVR, AREP/PMG system

IP44 protection level & B class temperature rise

High voltage alternator (3.3kV, 6.3kV, 10.5kV)

---


MTU Gensets List (50Hz, 1500rpm)
Model Prime Power Standby Power

Engine Model

Max Power

(kW/Hp)

Cyls.&

Type

Dspl.

(L)

Overall

Dimmension

(mm)

Weight

(kg)

PDF

D/L

kW kVa kW kVa
ET-300 220 275 240 300
6R1600G10F
274
6.L TBA 3120*1180*1800 2950 click download pdf
ET-330 240 300 260 330
6R1600G20F
301
6.L TBA 3120*1180*1800 2950 click download pdf
ET-385 280 350 308 385
8V1600G10F
358
8.V TBA
3050*1630*1960
3850 click download pdf
ET-440 320 400 352 440 8V1600G20F 394 8.V TBA 3050*1630*1960 3850 click download pdf
ET-500 360 450 400 500 10V1600G10F 448 10.V TBA 3050*1630*2030 4400 click download pdf
ET-550 400 500 440 550 10V1600G20F
493 10.V TBA 3350*1630*2030 4400 click download pdf
ET-660 480 600 528 660 12V1600G10F 576 12.V TBA 3500*1630*2130 4950 click download pdf
ET-715 520 650 572 715 12V1600G20F 634 12.V TBA 3500*1630*2130 4950 click download pdf
ET-825 600 750 660 825 12V2000G65 765 12.V TBA 4200*1650*2280 7000 click download pdf
ET-880 640 800 704 880 12V2000G65 765 12.V TBA 4200*1650*2280 7000 click download pdf
ET-1000 728 910 800 1000 16V2000G25 890 16.V TBA 4500*2000*2300 7850 click download pdf
ET-1100 800 1000 880 1100 16V2000G65 975 16.V TBA 4500*2000*2300 7850 click download pdf
ET-1125 820 1025 900 1125 16V2000G65 975 16.V TBA 4500*2000*2300 7850 click download pdf
ET-1250 908 1135 1000 1250 18V2000G65 1100 18.V TBA 4750*2100*2380 9000 click download pdf
ET-1250P 1000 1250 / / 18V2000G26F
1212 18.V TBA 4750*2100*2380 9000 click download pdf
ET-1375S / / 1100 1375 18V2000G76F 1235 18.V TBA 4750*2100*2380 9000 click download pdf
ET-1540 1120 1400 1232 1540 12V4000G23R 1325 12.V TBA 6150*2150*2400 12000 click download pdf
ET-1660 1240 1550 1328 1660 12V4000G23   1575 12.V TBA 6150*2150*2400 13000 click download pdf
ET-1800 1312 1640 1440 1800 12V4000G23   1575 12.V TBA 6150*2150*2400 13500 click download pdf
ET-2000 1480 1850 1600 2000 12V4000G63 1750 12.V TBA 6150*2150*2400 14000 click download pdf
ET-2250 1640 2050 1800 2250 16V4000G23   1965 16.V TBA 6500*2600*2500 17000 click download pdf
ET-2500 1800 2250 2000 2500 16V4000G63 2185 16.V TBA 6500*2600*2500 17600 click download pdf
ET-2750 2000 2500 2200 2750 20V4000G23 2420 20.V TBA 8300*2950*2550 20500 click download pdf
ET-3000 2200 2750 2400 3000 20V4000G63 2420 20.V TBA 8300*2950*2550 21000 click download pdf
ET-3250 2400 3000 2600 3250 20V4000G63L 2590 20.V  TBA 8300*2950*2550 21000 click download pdf

Remarks:

• Above gensets data are based on standard ratings of 50Hz/400V,  3 Phases & 4 Wires, Power Factor 0.8.

• Various low voltages and high voltages are available, High  Voltage of 6.3kv, 10.5kv, 13.8kv are available for option.

• Genset models marked with "P" means the gensets ratings is for  prime use.

• Genset models marked with "S" means the gensets ratings is for  standby use.

• Special demands for Soundproof Canopy, ATS, Parallel Control  and Remote Control are available.

• The data herein can vary depending on individual  production requirements or due to improved  technology.






MTU Gensets List (60Hz, 1800rpm)
Model Prime Power Standby Power

Engine Model

Max Power

(kW/Hp)

Cyls.&

Type

Dspl.

(L)

Overall

Dimmension

(mm)

Weight

(kg)

PDF

D/L

kW kVa kW kVa
ET-880 640 800 704 880 12V2000G45 780 12.V TBA 3971*1848*2150 5080 click download pdf
ET-1000 728 910 800 1000 12V2000G85 810 12.V TBA 4200*1650*2280 7000 click download pdf
ET-1137 820 1025 910 1137 16V2000G45 1007 16.V TBA 4500*2000*2300 7850 click download pdf
ET-1265 820 1025 900 1125 16V2000G65 975 16.V TBA 4500*2000*2300 7850 click download pdf
ET-1450 908 1135 1000 1250 18V2000G65 1100 18.V TBA 4750*2100*2380 9000 click download pdf
ET-1500 1000 1250 / / 18V2000G26F
1212 18.V TBA 4750*2100*2380 9000 click download pdf
ET-1562S / / 1100 1375 18V2000G76F 1235 18.V TBA 4750*2100*2380 9000 click download pdf
ET-1875 1312 1640 1440 1800 12V4000G23   1575 12.V TBA 6150*2150*2400 13500 click download pdf
ET-2200 1640 2050 1800 2250 16V4000G23   1965 16.V TBA 6500*2600*2500 17000 click download pdf
ET-2500 1800 2250 2000 2500 16V4000G63 2185 16.V TBA 6500*2600*2500 17600 click download pdf
ET-2750 2000 2500 2200 2750 20V4000G23 2420 20.V TBA 8300*2950*2550 20500 click download pdf
ET-3125 2200 2750 2400 3000 20V4000G63 2420 20.V TBA 8300*2950*2550 21000 click download pdf
ET-3438 2400 3000 2600 3250 20V4000G63L 2590 20.V TBA 8300*2950*2550 21000 click download pdf
ET-3750 2200 2750 2400 3000 20V4000G63 3311 20.V TBA 8300*2950*2550 21000 click download pdf
ET-4000 2400 3000 2600 3250 20V4000G63L 3311 20.V TBA 8300*2950*2550 21000 click download pdf

Remarks:

• Above gensets data are based on standard ratings of 50Hz/400V,  3 Phases & 4 Wires, Power Factor 0.8.

• Various low voltages and high voltages are available, High  Voltage of 6.3kv, 10.5kv, 13.8kv are available for option.

• Genset models marked with "P" means the gensets ratings is for  prime use.

• Genset models marked with "S" means the gensets ratings is for  standby use.

• Special demands for Soundproof Canopy, ATS, Parallel Control  and Remote Control are available.

• The data herein can vary depending on individual  production requirements or due to improved  technology.
