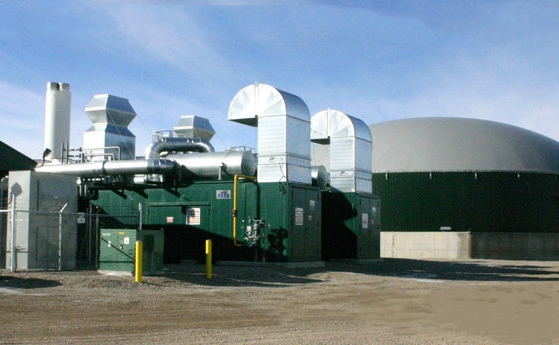

520kW biogas genset

Ettes Power MAN 520kW biogas engine generator & CHPs, assembled by world top engine of MAN E3262LE202, high performance & high efficiency for project of cogenerator of WtE (waste to energy) & distributed energy system.
  • EM-520B6

  • ETTES POWER

  • EMN 520kW Biogas Generator & CHP

Availability:

Ettes-power-MAN-Soundproof-Engine-Diesel-Gas-Generators-Set-100kW-200kW-500kW-EttesPower-Group

11



 Genset Main Technical Data
Genset Model: EM-520B5

Power Rating (kW/kVa)

520/650
MFG. Standards ISO 3046 & ISO8528
Rated Frequnendy 60Hz
Electrical Efficiency
40.0%
Heat Efficiency 43.0%
Total Efficiency 83.0%
Fuel consumption @100% load, m³/h 217
Control System ComAp or Equal
Emission

NOX<500mg/Nm3  , CO<650mg/Nm3

Manufacturer ETTES POWER


  Gas Engine Main Technical Data
Engine Brand & Model MAN E3262LE202
Engine Type Four stroke, Turbo Charged, and air to water cooled , Lean Burn
Cylinder Arrangement V-form
Bore x Stroke (mm) 132x157
Displacement (L) 25.8
Compressin Ratio 12:1
Rated Speed (rpm)
1800

Rated Output Power (kW)

550
Lean Burn, Excess Air Factor (Lambda) 1.57
Rotation Diretion Anti-clockwise Viewed on Flywheel
Oil consumption (g/kWh) <0.28


    Altternator Main Technical Data
Alternator Brand Leroy Somer or Equal
Model LSA Series
Standards ISO 8528-3, CE, ISO9001 and ISO 14001
Frequnendy (Hz) 60
Rated Voltage (V) 440 / 480
Excitation Method

Self-excited (AREP), Brushless, AVR

Phase / Connection

3 Phase 4 Wire, Y-Connecton

Power Fator (COSΦ) 0.8 (adjustable)
Protection Level / Installation Class IP 23 / H


 Main Options

Engine

Jacket water radiator

Space heater

Treatments against humidity and corrosion

Alternator

Space heater

Treatments against humidity and corrosion

Lubrication system

Daily auxiliary oil tank

Auto refilling oil system

Electrical system

RCD

ATS control cabinet

Thermal power gauge, Electric power gauge

Sync paralleling control system

Gas supply system

Gas flow gauge

Emergency pressure relief torch Water separator

Gas compressor

Gas purification device


► Dimensions and Weights



Open Type Dimension, mm 5500 × 2000 × 2100

Weight, kg

7500

Soundpoof Type

Dimension mm 5820 × 2180 × 2620
Weight  kg 8500
Containerized Type
Dimension mm TBA
Weight  kg TBA


► Delivery Time

About 90~120 days after order confirmation.



► About MAN Gas Engine Generators

50kW~600kW, Compact Design, Powerful, Max efficient, High Reliable, Low Emissions, Long Serice Life


As a leading manufacture and assembler for whole gas engine generator set & CHPs in China, ETTES mainly adopt MAN engines of E0834,


E0836, E2676, E3262, and E3268 etc, with features of Proven and fully developed, Flexibility and individuality, Robust and compact, High


Efficient and Low emissions. In addition to standard package of electrical generation, client’s special requirements can be tailored such as


CHP, CCHP, Cogeneration, ATS, Parallel operation system, Remote monitor & Control, Modularized soundproof & weatherproof container.


► About Production Standards & Certification

 Prevailing Industry Standards: ISO3046,ISO8528,GB2820, BS5000PT99,AS1359,IEC34, DIN6271, BS5514.

 ISO Standards: ISO9001:2008, ISO14001, ISO45001 (former OHSAS 18001)

• National & Regional Comformity Standards: CE, UL, EPA, CSA and SONCAP etc.

 Third Party Certification for Gensets: SGS, CCS, BV, ABS and DNV-GL etc.


► Adopted World Top Materials to Assemble Gas Generating Set

 Gas Engines Brands: Cummins, MAN, MWM, CNPC

 Alternators Brands: Stamford AVK, Leroy Somer, Marelli, or Mec calte

 Control System: Deepsea, ComAp or DEIF

 Air Circuit Breaker/Switchgear: ABB, Schneider, Eaton or Siemens

 Governing Actuator: Germany Mototerch, Heinzmann, USA Woodward or Swiss Huegli

 Air-Gas Mixer: Auto, Electrically controlled, Germany Motortech or Swiss Huegli

 Ignition System: Germany Mototerch, USA Altronic or Swiss Huegli

• Key Materials of CHP System: Siemens, Alfa laval, Swep and Grundfos

 Gas Train (safty valves): Germany Dungs, Chroms or Italy Madas

 Tailored configuration: Common soundproof canopy, 20 & 40 feet modular container, ATS/ACS system, Synchronization parallel panel, Remote control & Scada system, Oil & cylinder water heater, Anti-condensation heater (space heater), Digital AVR, AREP/PMG system, IP44 protection level & B class temperature rise, High voltage alternator (3.3kV, 6.3kV, 10.5kV etc.), CHP, CCHP, and Trigeneration etc.


► Applicable Gas Fuels & Quality Requirements

• Pipeline Natural Gas (PNG, CNG, LNG)

 Oilfield APG (Associated Petroleum Gas)

 Coalmine Methane Gas

• CBM (Coalbed Methane)

 Well Gas, Shale Gas & Other Methane Based Gases

 Gas Fuel Quality Requirements


Composition Abbr. Limits Remarks
Methane number MN >80 for natural gas For Lower value, please consult ETTES POWER
Calorific value Hμ,N Lower value of 36MJ/Nm³ Standard Calorific Value for Ettes Datasheet as per
ISO8528/1, ISO3046/1 and BS5514/1.
Chlorine CL <80 mg / Nm³ CH4

For higher value, please consult ETTES POWER

Fluoride F <40 mg / Nm³ CH4 For higher value, please consult ETTES POWER
Total-chlorine Fluoride ∑(Cl,F) <80 mg / Nm³ CH4 For higher value, please consult ETTES POWER
Dust / <5μm
<10 mg / Nm³ CH4
For higher value, please consult ETTES POWER
Oil Vapor  / <400 mg / Nm³ CH4 No condensation may occur in the mixture section
Silicon Element Si <2 mg / Nm³ CH4 For higher value, please consult ETTES POWER
Sulphur S <200 mg / Nm³ For higher values, please consult ETTES POWER
Hydrogen Sulphide H2S <150 ppm or <228 mg / Nm³ For higher value, please consult ETTES POWER
Ammonia NH3 <40 ppm or<30 mg / Nm³ For other values, please consult ETTES POWER
Gas Pressure Range / 5kPa~20kPa For other values, please consult ETTES POWER
Gas Temperature / <30℃ For other values, please consult ETTES POWER
