EW-1560N6
ETTES POWER

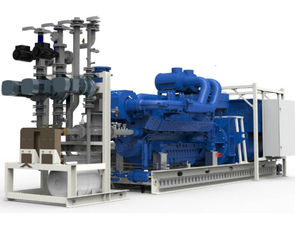

EWN 1560kW Natural Gas Generator & CHP
| Genset Main Technical Data | |
| Genset Model: | EW-1560N6 |
Power Rating (kW/kVa) | 1560 / 1950 |
| MFG. Standards | ISO 3046 & ISO8528 |
| Rated Frequnendy | 60Hz |
| Electrical Efficiency | 43.0% |
| Heat Efficiency | 43.8% |
| Total Efficiency | 86.8% |
| Fuel consumption @100% load, m³/h | 363 |
| Control System | ComAp or Equal |
| Emission | NOX<500mg/Nm3 , CO<300mg/Nm3 |
| Manufacturer | ETTES POWER |
| Gas Engine Main Technical Data | |
| Engine Brand & Model | MWM TCG3016V16 / CG170-16 |
| Engine Type | Four stroke, Turbo Charged, and air to water cooled , Lean Burn |
| Cylinder Arrangement | V-form |
| Bore x Stroke (mm) | 170x195 |
| Displacement (L) | 71 |
| Compressin Ratio | 13:1 |
| Rated Speed (rpm) | 1800 |
| Rated Output Power (kW) | 1545 |
| Excess air factor | 1.7 |
| Rotation Diretion | Anti-clockwise Viewed on Flywheel |
| Oil consumption (g/kWh) | <0.2 |
| Altternator Main Technical Data | |
| Alternator Brand | Marelli |
| Model | MJB 500MD4 |
| Standards | ISO 8528-3, CE, ISO9001 and ISO 14001 |
| Frequnendy (Hz) | 60 |
| Rated Voltage (V) | 480 |
| Excitation Method | Self-excited (AREP), Brushless, AVR |
| Phase / Connection | 3 Phase 4 Wire, Star |
| Power Fator (COSΦ) | 0.8 (adjustable) |
| Protection Level / Installation Class | IP 23 / H |
| Main Options | |
Engine | Jacket water radiator Jacket water heater |
| Alternator | Space heater Treatments against humidity and corrosion |
| Exhaust system | Three-way catalytic converter |
| Electrical system | RCD Grounding bar |
| Gas supply system | Gas flow gauge |
| Service and documents | Service tools Maintenance and service parts |
► Dimensions and Weights
| Open Type | Dimension, mm | 6200 × 1900 × 2210 |
Weight, kg | 16000 | |
| Containerized Type | Dimension mm | TBA |
| Weight kg | TBA |
► Delivery Time
About 90~120 days after order confirmation.
► About MWM Gas Engine Generators
400kW~2000kW, Optimum Efficiency, Full Turbopower, Long Life-span, High Reliable, More Profits
As a leading manufacturer and assembler for whole gas fired generator set & CHPs in China, Ettes mainly adopt MWM engines of CG132 (TCG3016), CG170 (TCG2020) and CG260 (TCG2032) at engine type of V8, V12, V16 and V20 etc, with features of high reliable, quick installation, easy operation and low maintenance cost. In addition to standard package of electrical generation, client’s special requirements can be tailored such as CHP(combined heat and power), Cogeneration, trigeneration ,combined cold heat and power (CCHP), ATS, Parallel operation system, Remote monitor & Control, Modularized soundproof & weatherproof container.
► About Production Standards & Certification
• Prevailing Industry Standards: ISO3046，ISO8528，GB2820, BS5000PT99,AS1359,IEC34, DIN6271, BS5514.
• ISO Standards: ISO9001:2008, ISO14001, ISO45001 (former OHSAS 18001)
• National & Regional Comformity Standards: CE, UL, EPA, CSA and SONCAP etc.
• Third Party Certification for Gensets: SGS, CCS, BV, ABS and DNV-GL etc.
► Adopted World Top Materials to Assemble Gas Generating Set
• Gas Engines Brands: Cummins, MAN, MWM, CNPC
• Alternators Brands: Stamford AVK, Leroy Somer, Marelli, or Mec calte
• Control System: Deepsea, ComAp or DEIF
• Air Circuit Breaker/Switchgear: ABB, Schneider, Eaton or Siemens
• Governing Actuator: Germany Mototerch, Heinzmann, USA Woodward or Swiss Huegli
• Air-Gas Mixer: Auto, Electrically controlled, Germany Motortech or Swiss Huegli
• Ignition System: Germany Mototerch, USA Altronic or Swiss Huegli
• Key Materials of CHP System: Siemens, Alfa laval, Swep and Grundfos
• Gas Train (safty valves): Germany Dungs, Chroms or Italy Madas
• Tailored configuration: Common soundproof canopy, 20 & 40 feet modular container, ATS/ACS system, Synchronization parallel panel, Remote control & Scada system, Oil & cylinder water heater, Anti-condensation heater (space heater), Digital AVR, AREP/PMG system, IP44 protection level & B class temperature rise, High voltage alternator (3.3kV, 6.3kV, 10.5kV etc.), CHP, CCHP, and Trigeneration etc.
► Applicable Gas Fuels & Quality Requirements
• Pipeline Natural Gas (PNG, CNG, LNG)
• Oilfield APG (Associated Petroleum Gas)
• Coalmine Methane Gas
• CBM (Coalbed Methane)
• Well Gas, Shale Gas & Other Methane Based Gases
• Gas Fuel Quality Requirements
| Composition | Abbr. | Limits | Remarks |
| Methane number | MN | ＞80 for natural gas | For Lower value, please consult ETTES POWER |
| Calorific value | Hμ，N | Lower value of 36MJ/Nm³ | Standard Calorific Value for Ettes Datasheet as per ISO8528/1, ISO3046/1 and BS5514/1. |
| Chlorine | CL | ＜80 mg / Nm³ CH4 | For higher value, please consult ETTES POWER |
| Fluoride | F | ＜40 mg / Nm³ CH4 | For higher value, please consult ETTES POWER |
| Total-chlorine Fluoride | ∑(Cl,F) | ＜80 mg / Nm³ CH4 | For higher value, please consult ETTES POWER |
| Dust | / | ＜5μm ＜10 mg / Nm³ CH4 | For higher value, please consult ETTES POWER |
| Oil Vapor | / | ＜400 mg / Nm³ CH4 | No condensation may occur in the mixture section |
| Silicon Element | Si | ＜2 mg / Nm³ CH4 | For higher value, please consult ETTES POWER |
| Sulphur | S | ＜200 mg / Nm³ | For higher values, please consult ETTES POWER |
| Hydrogen Sulphide | H2S | ＜150 ppm or ＜228 mg / Nm³ | For higher value, please consult ETTES POWER |
| Ammonia | NH3 | ＜40 ppm or＜30 mg / Nm³ | For other values, please consult ETTES POWER |
| Gas Pressure Range | / | 5kPa~20kPa | For other values, please consult ETTES POWER |
| Gas Temperature | / | ＜30℃ | For other values, please consult ETTES POWER |
Island Mode
Single Genset Operation
Multiple Gensets in Parallel
Grid-Connected Mode
Operation in Parallel with mains grid
Export Energy Mode
Grid-tied & Power Export to Mains
Hybrid Power System
Integrated Microgrid combining diesel & gas engines generator sets, solar PV, wind turbines and battery energy storage units
Pipeline/LNG/CNG
CBM Coal-bed methane Gas
Oilfield Associated Gas-Flare Gas
APG Associated Petroleum gas
landfill gas, wastewater treatment plant, Livestock farm, organic waster anaerobic digestion
Main Applications: electricity generation, CHP-Combined Heat & Power, Trigeneration, Distributed Energy Power Generation
