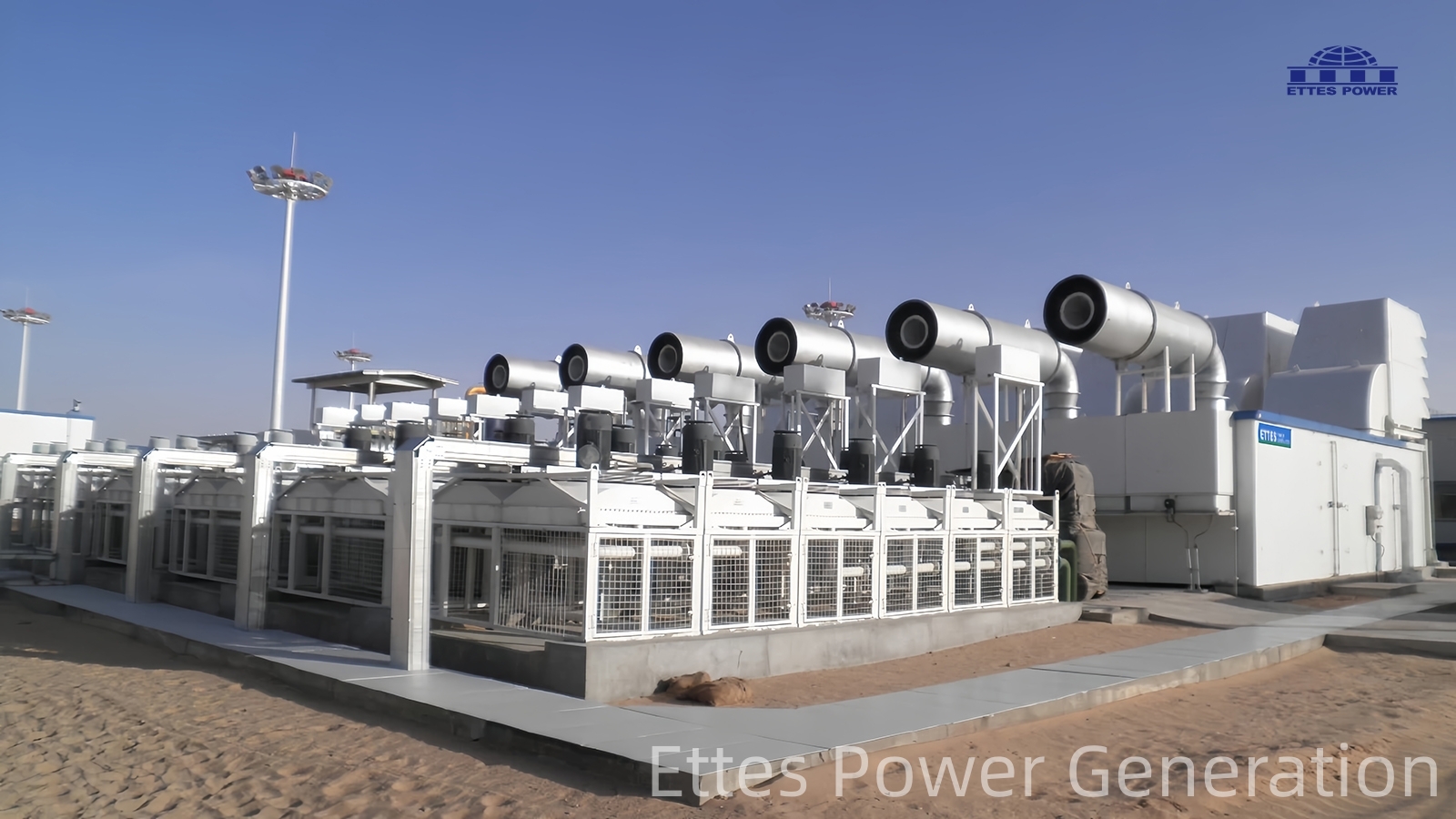

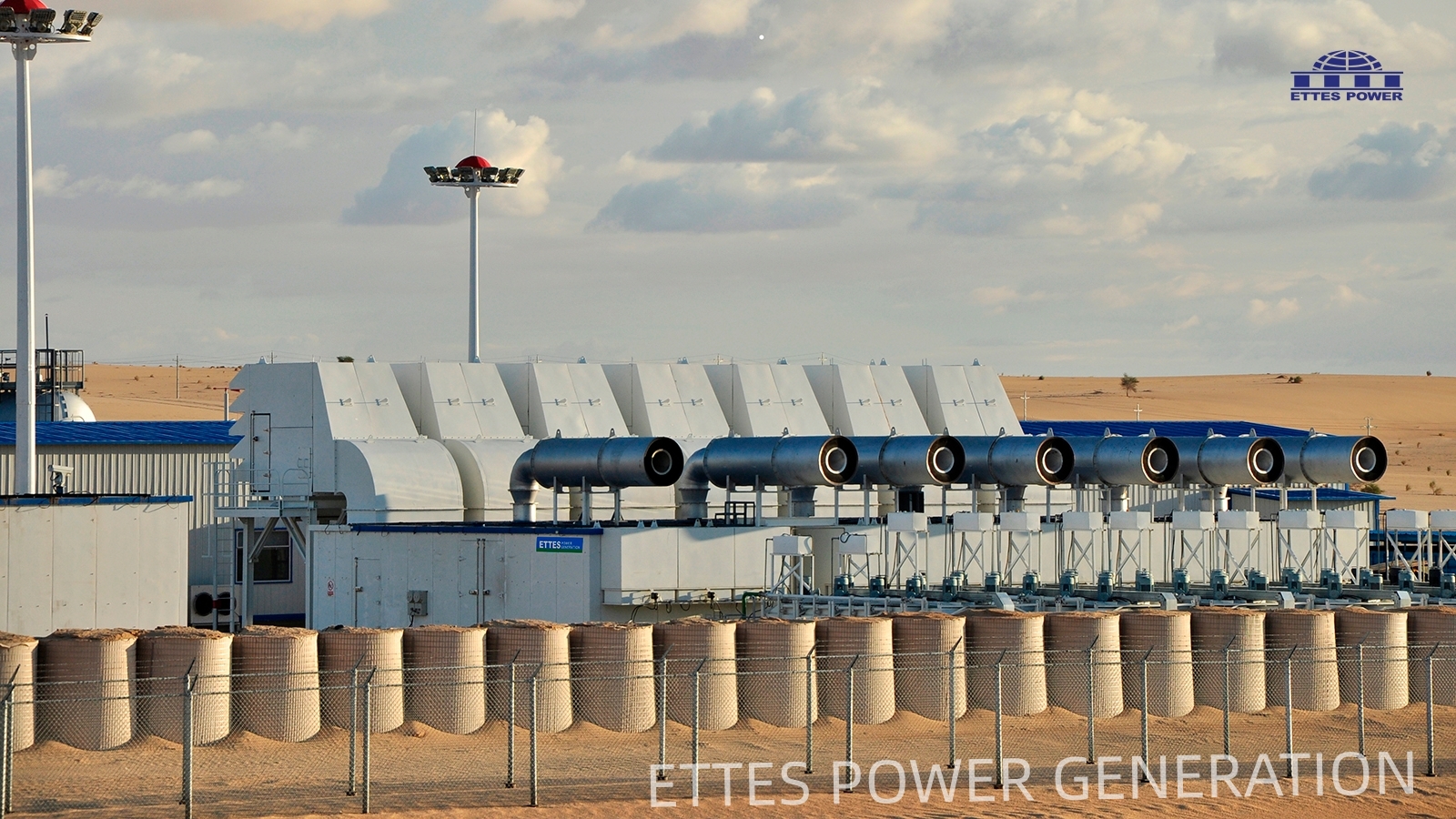

7MW Oilfield APG Containerized Gas Generation Plant to Africa

Project Profile

of Gas Power Plant

Project Name

7MW Oilfield Associated Gas Power Plant (10.5kV)

Working Area

Oilfields Sahala Desert, Niger, CNPC Controlled Project

Gas Fuel

Oilfield APG (Methane Number 68)

Genset Type

Soundproof Containerized Gas Gererator

Gensets Number

7x1000kW Running in Parallel

Actual Output

7MW (Due to impurity contents in gas)

Operating Mode

Parallelly synchronized with mains grid and export energy

Gas Generation Configuration

Genset Model

EJ-1200N5

Rated Power

1200kW

Electric Eifficiency

38.3%

Gas Engine

CNPC 190 Series H16V190ZLT

Burn Technoiogy

Lean Burn, Excess air factor (Lambda) 1.55

Cooling Method

Closed Water Cooling by Table Cooler

Alterator

Siements JFG Series

Contorl System

Intelligent Closed Loop Control, Synchronization Parallel Control ComAp IG-NT

Governor/Actuator

Woodward from USA

Air-Gas Mixer

IMPCO from USA

Ignition System

Motortech from Germany

Spark Plugs

Deson or STITT

Gas Train

Ball Valve, Gas Filter, Pressure Regulation Valve, Pressure Gauge, Solenoid Valve; Make/Brand Germany Chroms, Dungs, Italy Madas etc.

Gas Fuel Consumption

0.4CBM/kWh

Lub Oil Consumption

＜0.5g/kWh

Remarks

Special Demand

IP 44 Protections Class, Special designed air inlet and ventilation system due to harsh site conditions

Working Mode

Non-stop Continuous Working, Synchronized With Grid, Export Energy to Mains Grid.

Applications

Oilfield associated petroleum gas (APG), is a form of methane gas, an ideal fuel for power generation. Gensets are connected with Mains Grid and selling electricity.

Commissioning Year

May, 2021
