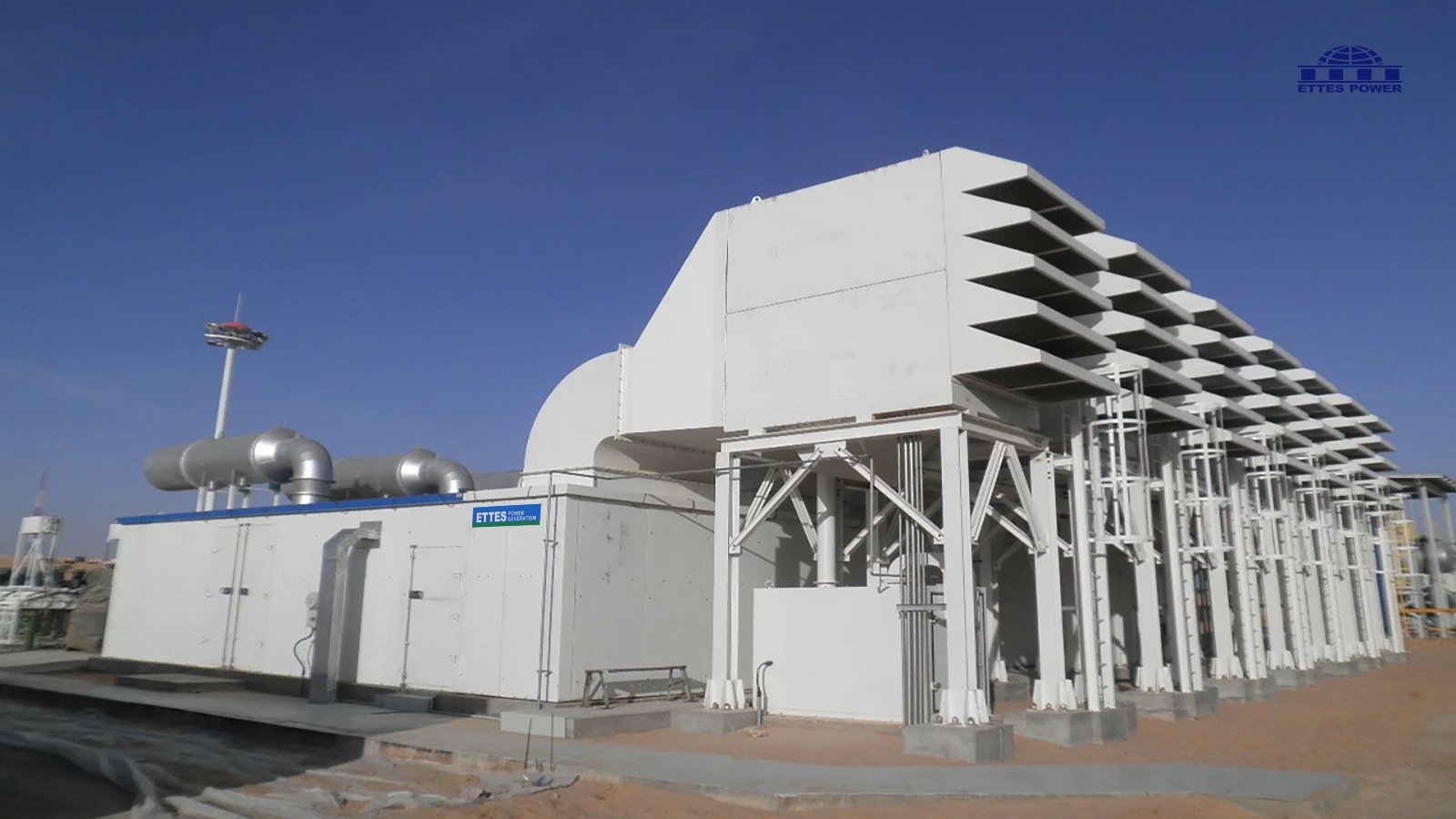

6×1000kW Container Natural Gas Generator Sets to Africa

Project Profile

of Gas Power Plant

Project Name

6MW Associated Gas Power Plant (10.5kV)

Working Area

Oilfields Sahala Desert, Niger, CNPC Controlled Project

Gas Fuel

Oilfield APG (Methane Number 69)

Genset Type

Soundproof Containerized Gas Gererator Set

Gensets Number

6x1000kW Working in Parallel

Actual Output

5.4MW (Due to impurity contents in gas)

Operating Mode

Parallelly synchronized with mains grid and export energy

Gas Generation Config.

Genset Model

EJ-1000N5

Rated Power

1000kW

Electric Eifficiency

38.3%

Gas Engine

CNPC 190 Series H16V190ZLT

Burn Technoiogy

Lean Burn, Excess air factor (Lambda) 1.55

Cooling Method

Closed Water Cooling by Table Cooler

Alterator

Siements JFG Series

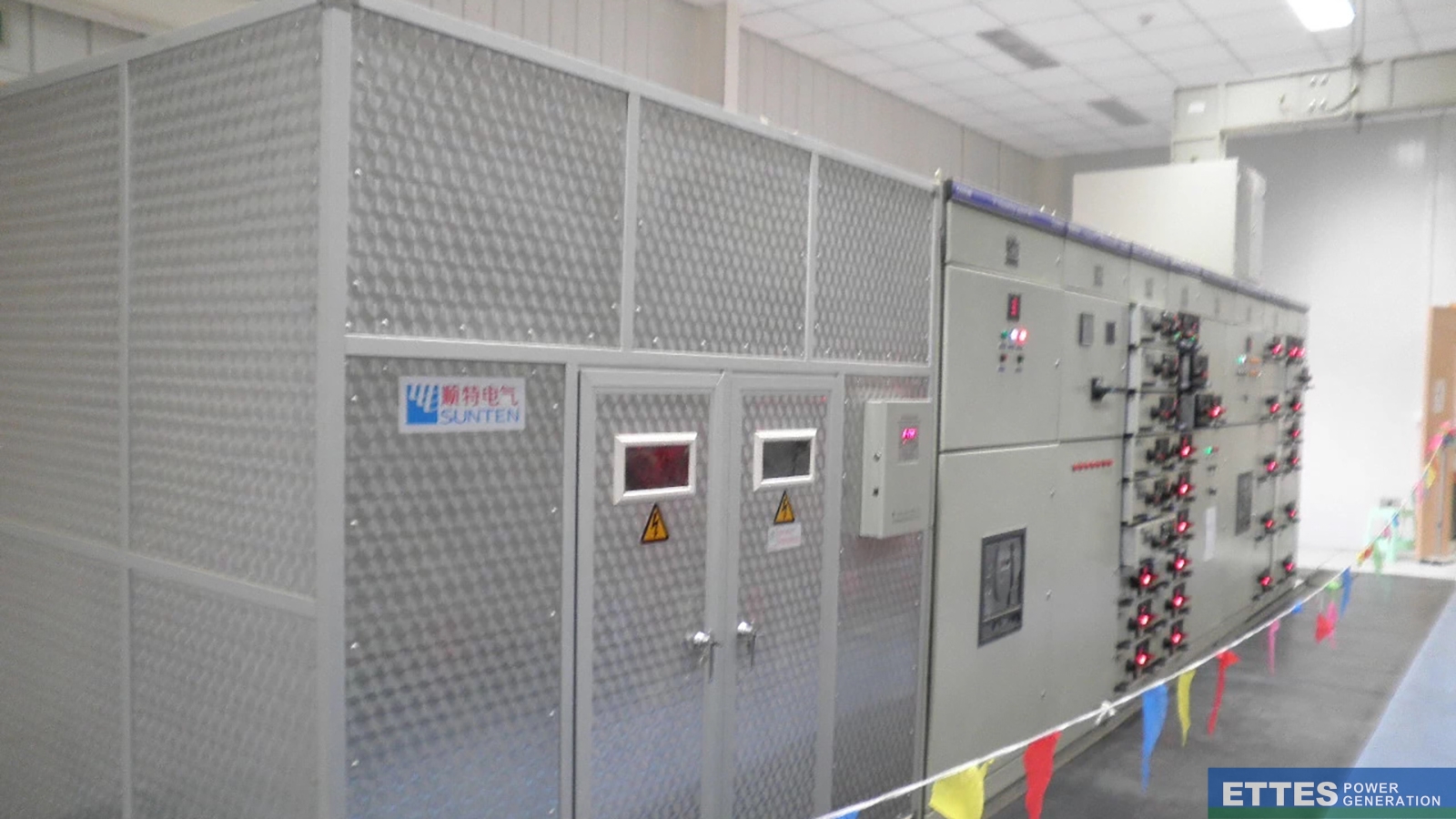

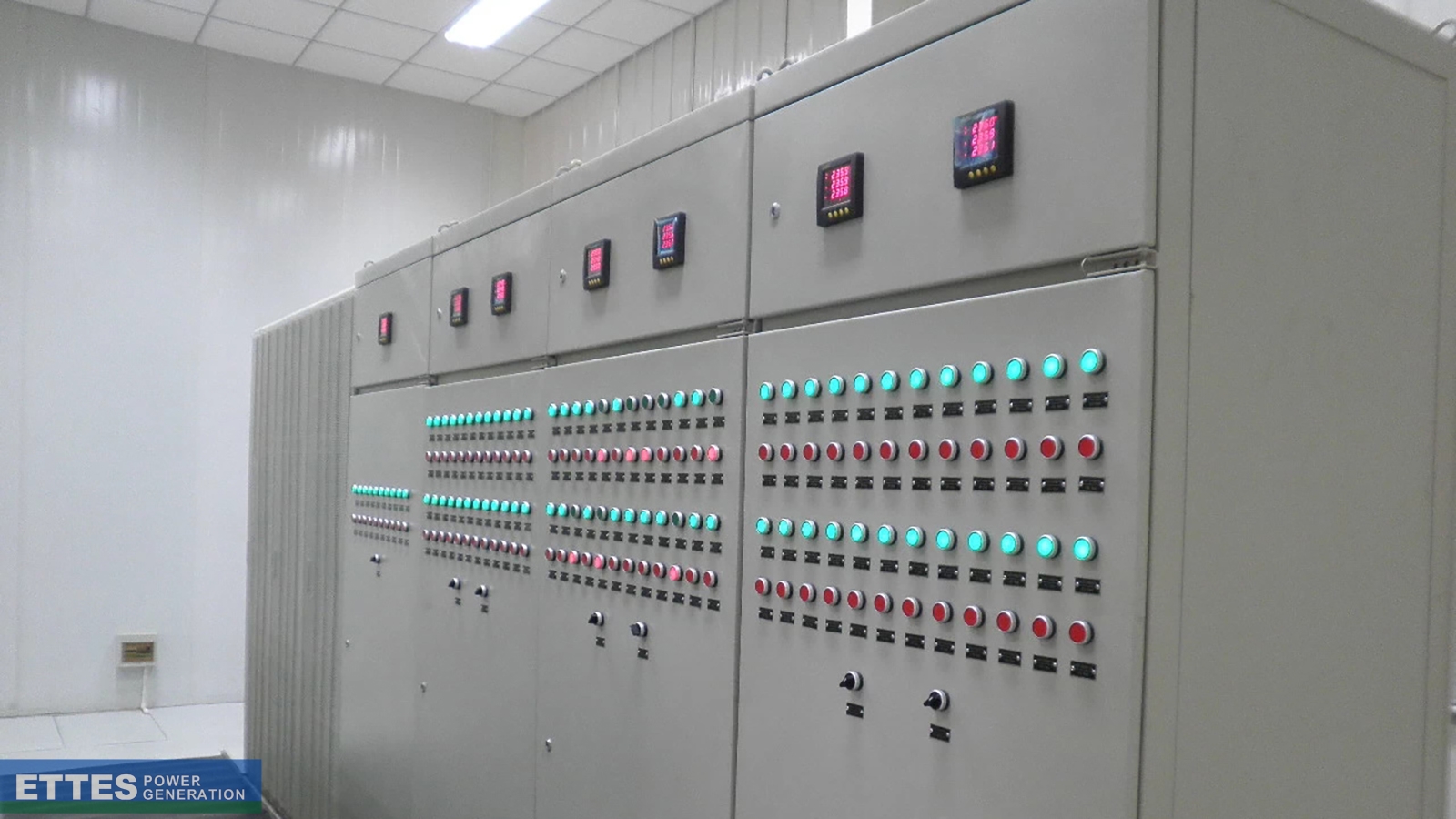

Contorl System

Intelligent Closed Loop Control, Synchronization Parallel Control ComAp IG-NT

Governor/Actuator

Woodward from USA

Air-Gas Mixer

IMPCO from USA

Ignition System

Motortech from Germany

Spark Plugs

Deson or STITT

Gas Train

Ball Valve, Gas Filter, Pressure Regulation Valve, Pressure Gauge, Solenoid Valve; Make/Brand Germany Chroms, Dungs, Italy Madas etc.

Gas Fuel Consumption

＜0.3CBM/kWh

Lub Oil Consumption

＜0.5g/kWh

Others

Special Demand

IP44 Protection Class, Specially designed air inlet system and specially designed radiator.

Working Mode

Non-stop Continuous Working, Synchronized With Grid, Export Energy to Mains Grid.

Applications

Oil field associated gas, via treatment, an ideal fuel combustion engine, can generate electricity while heat for self-use to commercial use, which is forming a system of waste gas to energy. This plant exports energy to mains grid and make good financial benefits by selling electricity.

Commissioning Year

Nov, 2023
